Description

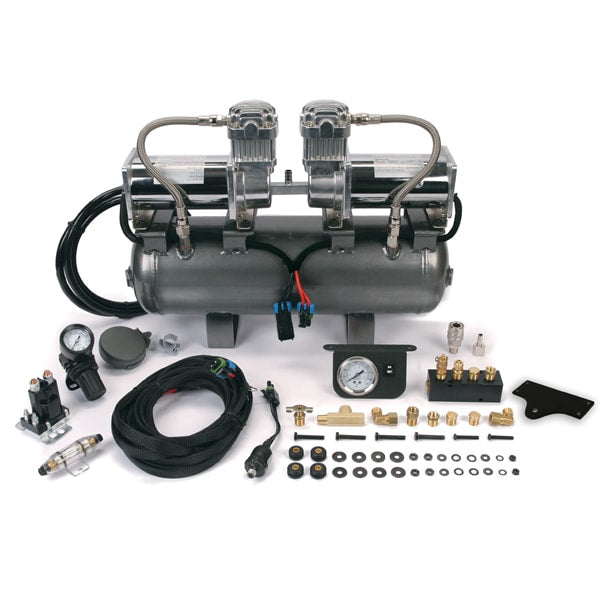

Using two high output compressors mounted to a 2.0 gallon, 2on2 systems provide 200 PSI of maximum pressure. They come with an easy-to-install wiring harness and manifold to make wiring and plumbing straightforward.
SPECS:
- CFM: 2.54 @ 0 PSI
- 12-Volt
- Permanent Magnetic Motor
- Duty Cycle: 100% @ 100 PSIDuty Cycle: 55% @ 200 PSI
- Max. Working Pressure: 200 PSI
- Max. Amp Draw: 44-Amps
- Ingress Protection Rating: IP67
- Max Ambient Temp: +158°F
- Min Ambient Temp: -40°F
- Dimensions: 18.5″L x 5.9″W x 13.5″H
- Net Weight: 30 lbs.
INCLUDED:
- 60-amp Fuse & Fuse Holder
- 80-amp Relay
- (2) 1/4” BSP Adapters for Air Lockers
- T-Fitting 1/4″ NPT F x 1/4″ NPT F x 1/4″ NPT M
- 1/8″ to 1/4″ NPT Reducer
- Wiring Harness with Delphi Connectors
- (2) Delphi Connector Plug Kits
- Billet 1/4” NPT x 6-Port Manifold and Mounting Bracket
- Air Filter Housing with Installed Element
- (2) Replacement Air Filter Elements
- Dash Panel Air Pressure Gauge (0-160 PSI Illuminated)
- Air Pressure Regulator
- 15ft. DOT Air Line
TIRE FILL RATE
| 37″ X 12.5″ | FILL RATE |
|---|---|
| 0 to 30 PSI | 5 min. 00 sec. (± 15 sec.) |
| 15 to 30 PSI | 2 min. 30 sec. (± 10 sec.) |
| 40″ X 15.5″ | FILL RATE |
| 0 to 30 PSI | 5 min. 25 sec. (± 15 sec.) |
| 15 to 30 PSI | 2 min. 40 sec. (± 10 sec.) |
