Description

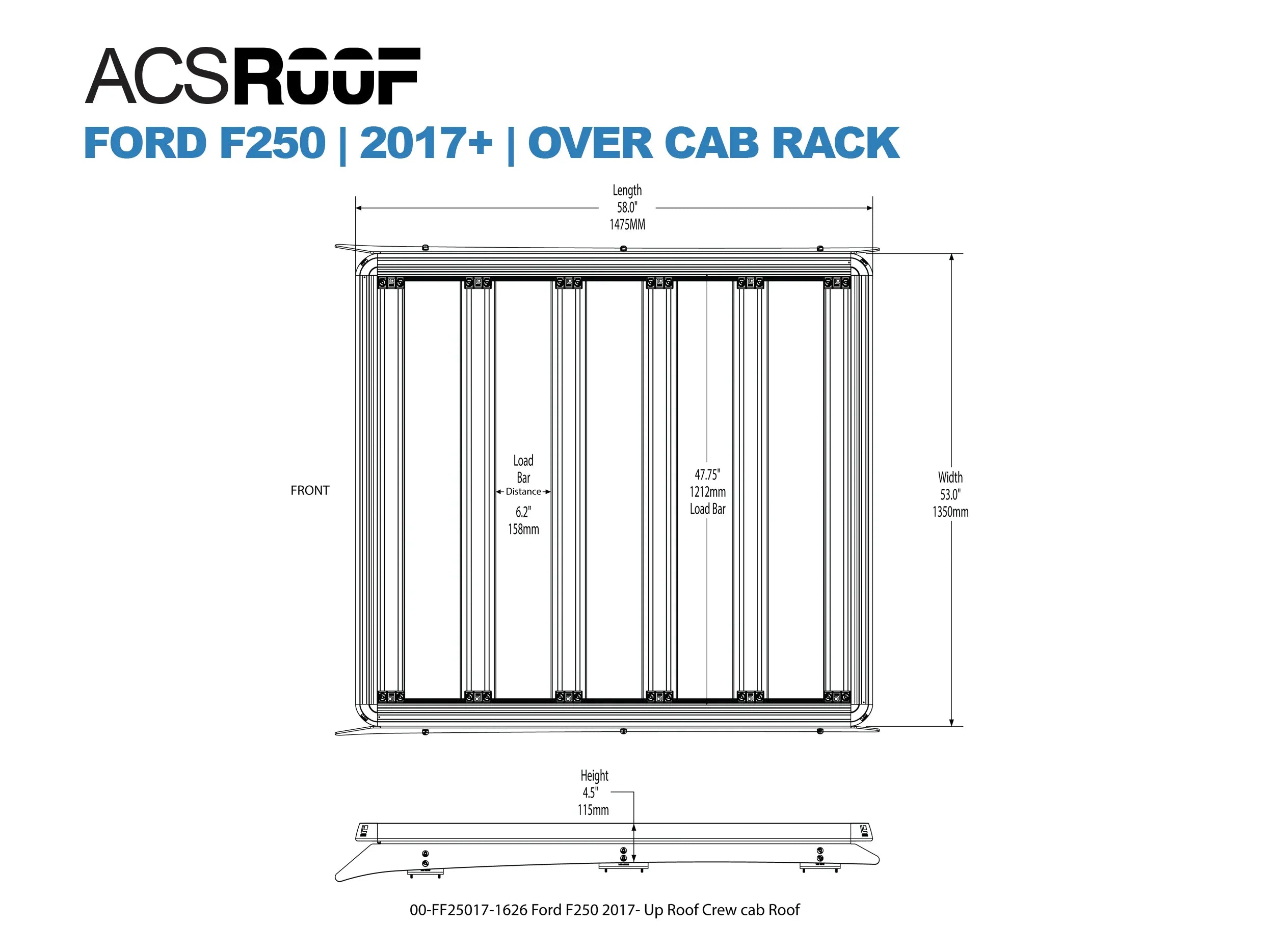

Part # 00-FF25017-1626

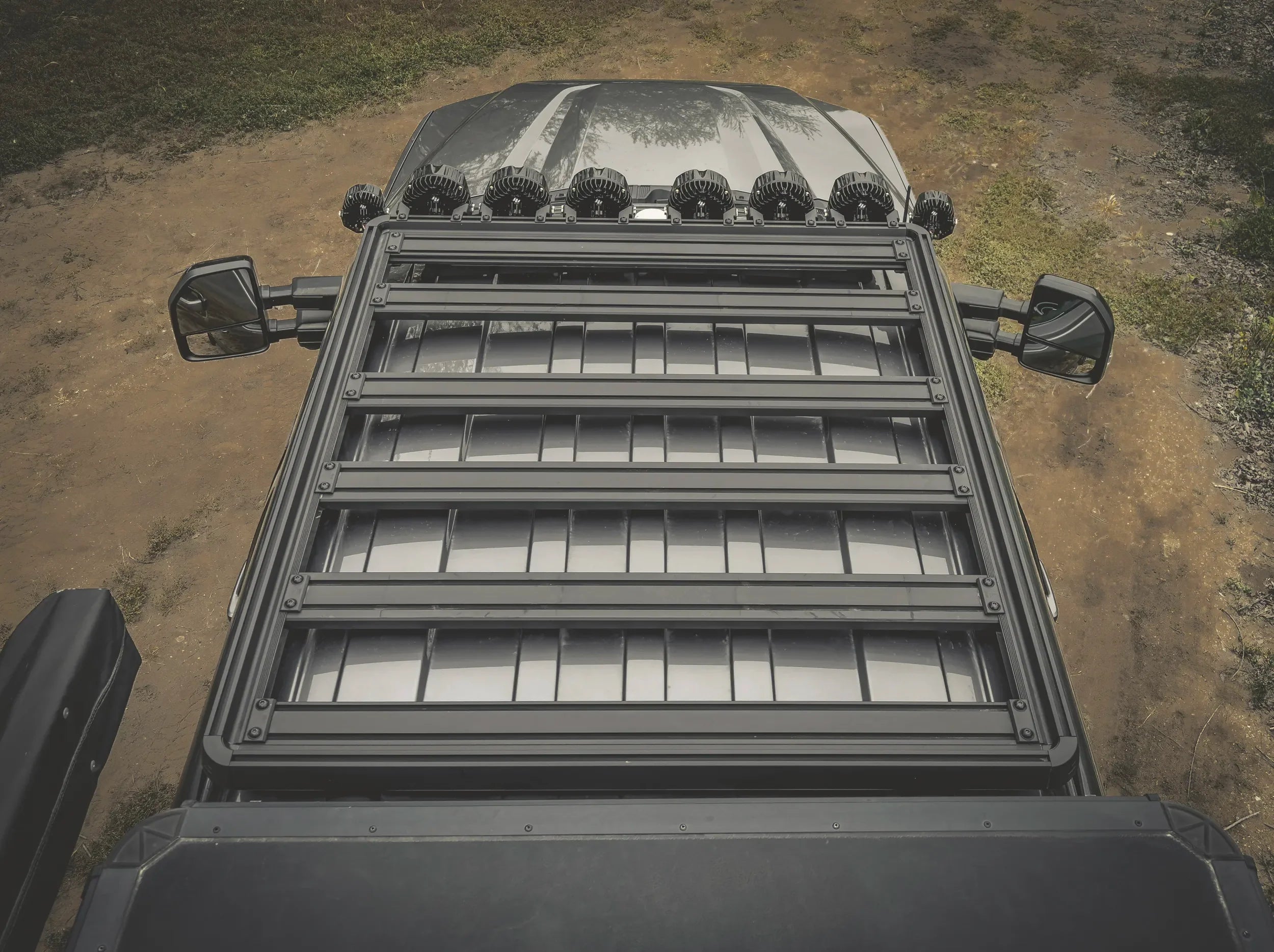

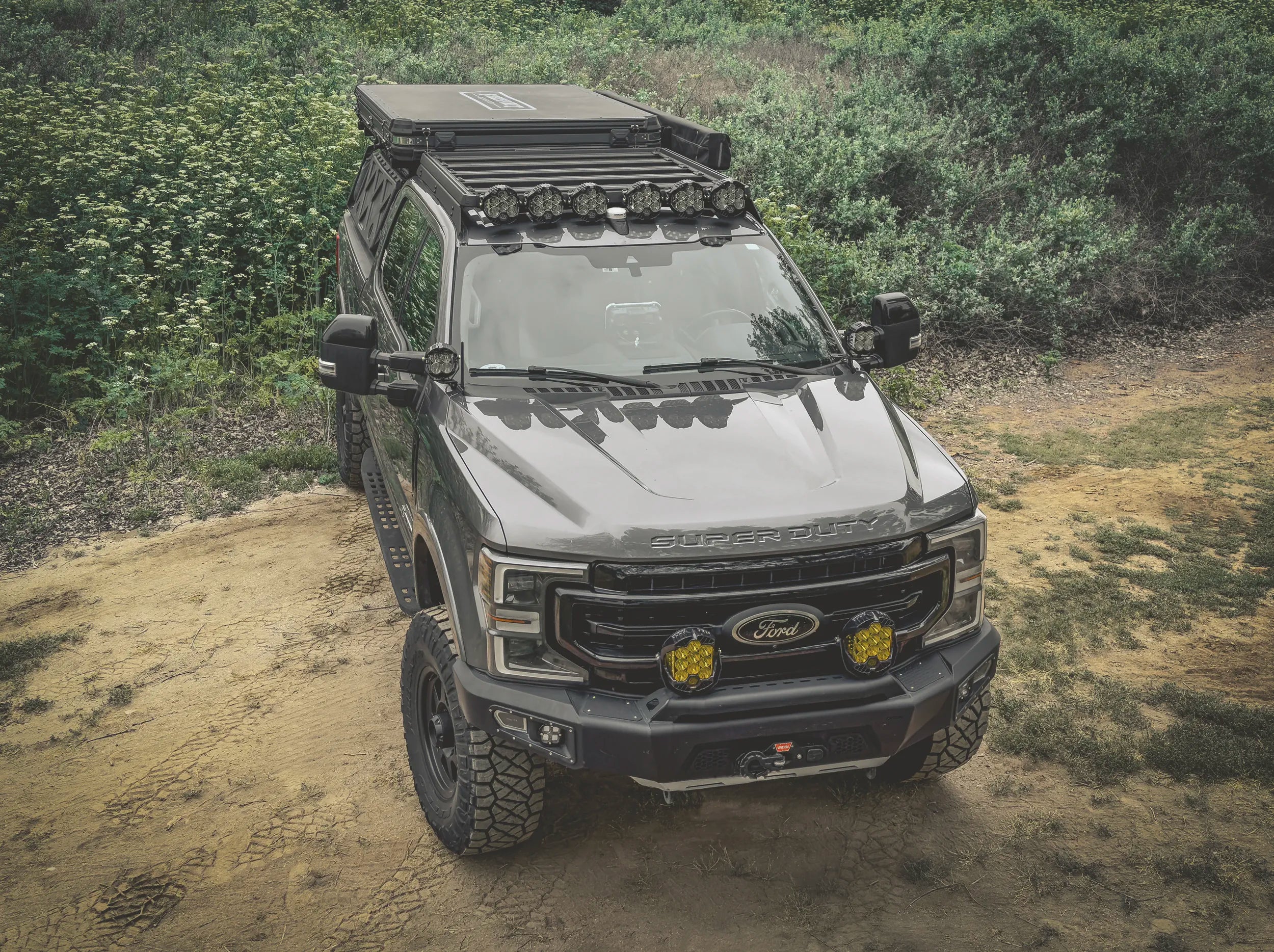

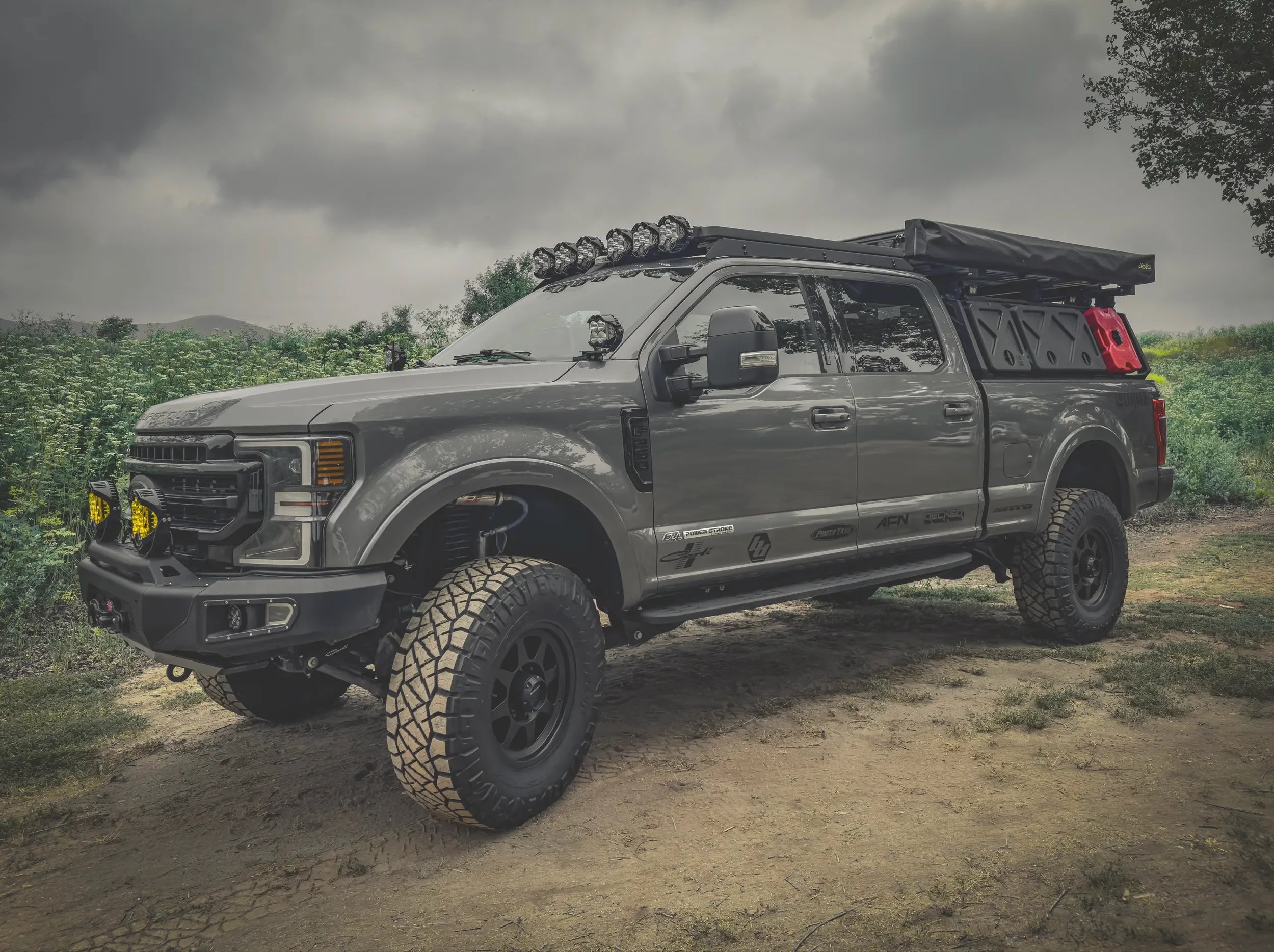

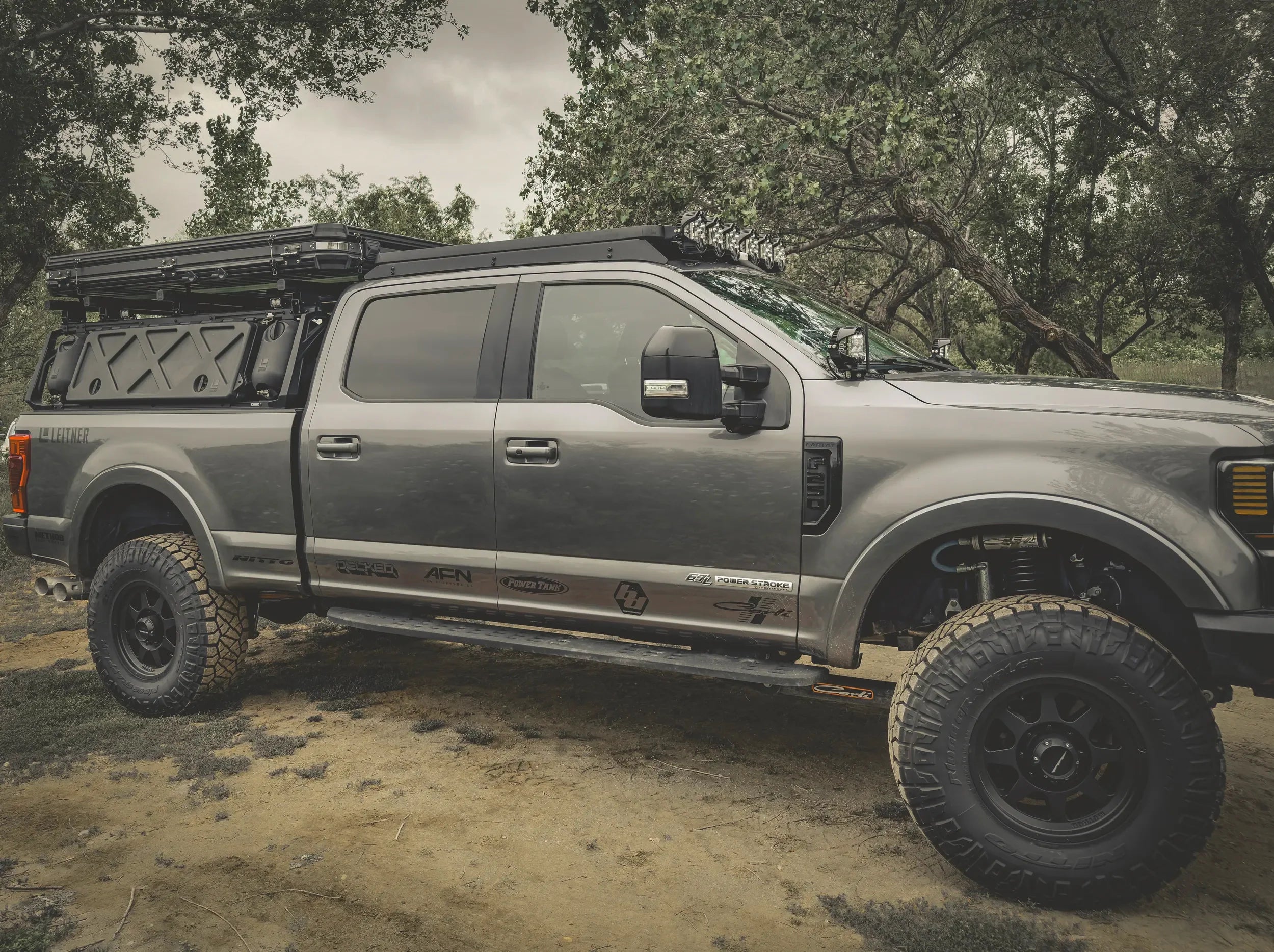

Fitment: Ford F-250, F-350, F-450, and F-550, 2017 and newer.

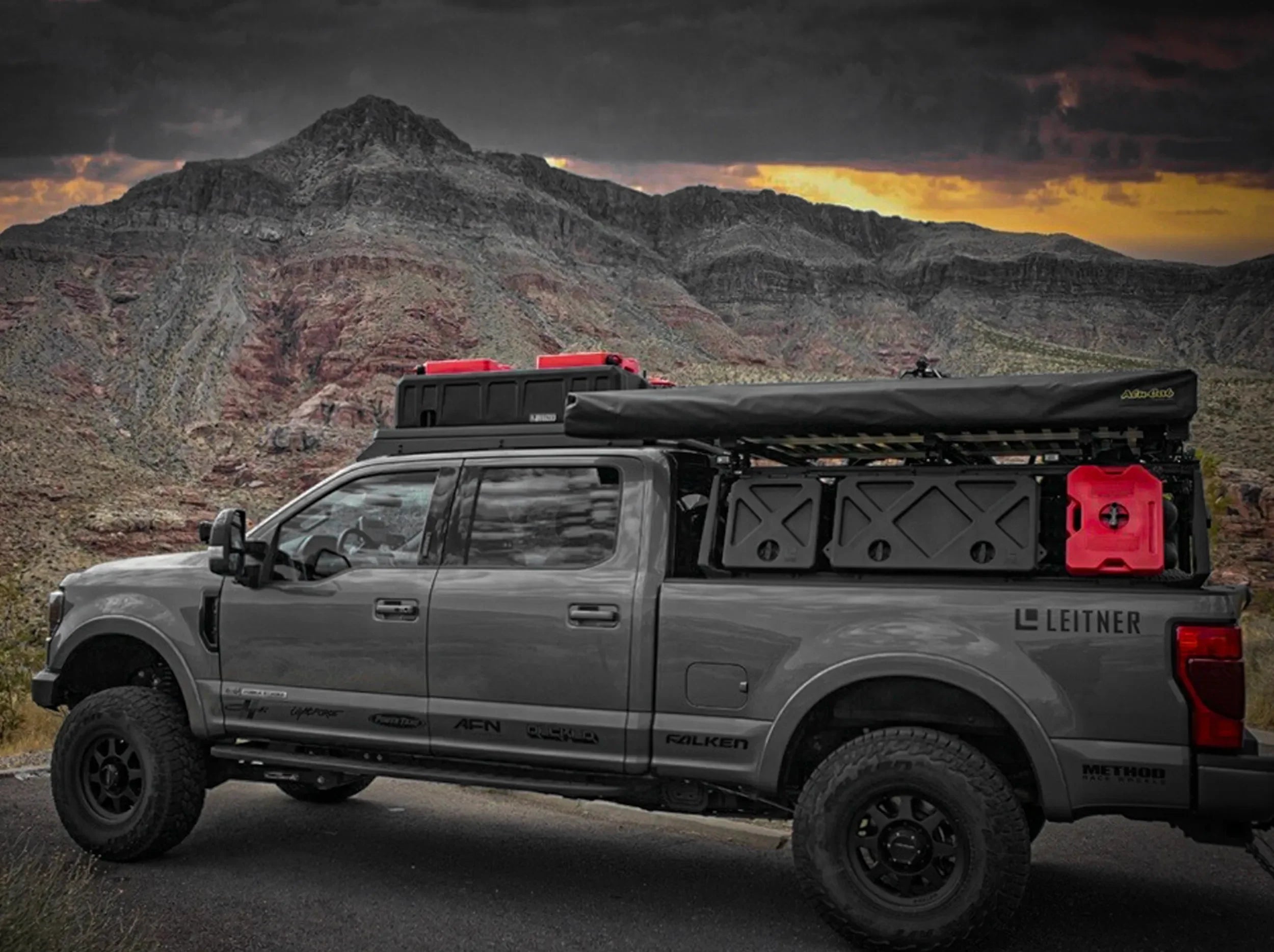

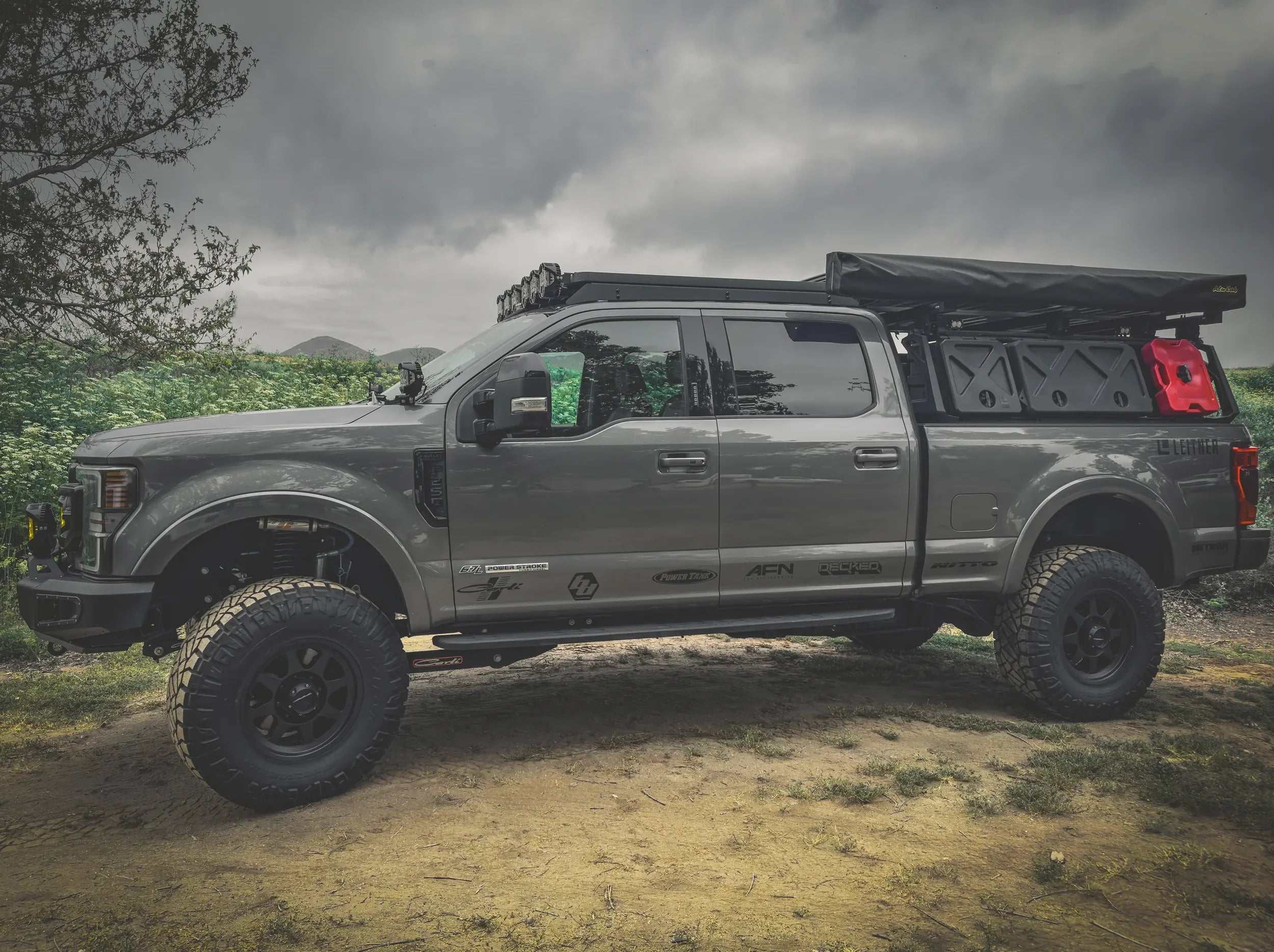

The Leitner Designs ACS ROOF over-cab platform rack combines no-drill installation with adjustable load bars to help organize roof-mounted gear for road trips and off-road adventures.
Key Features

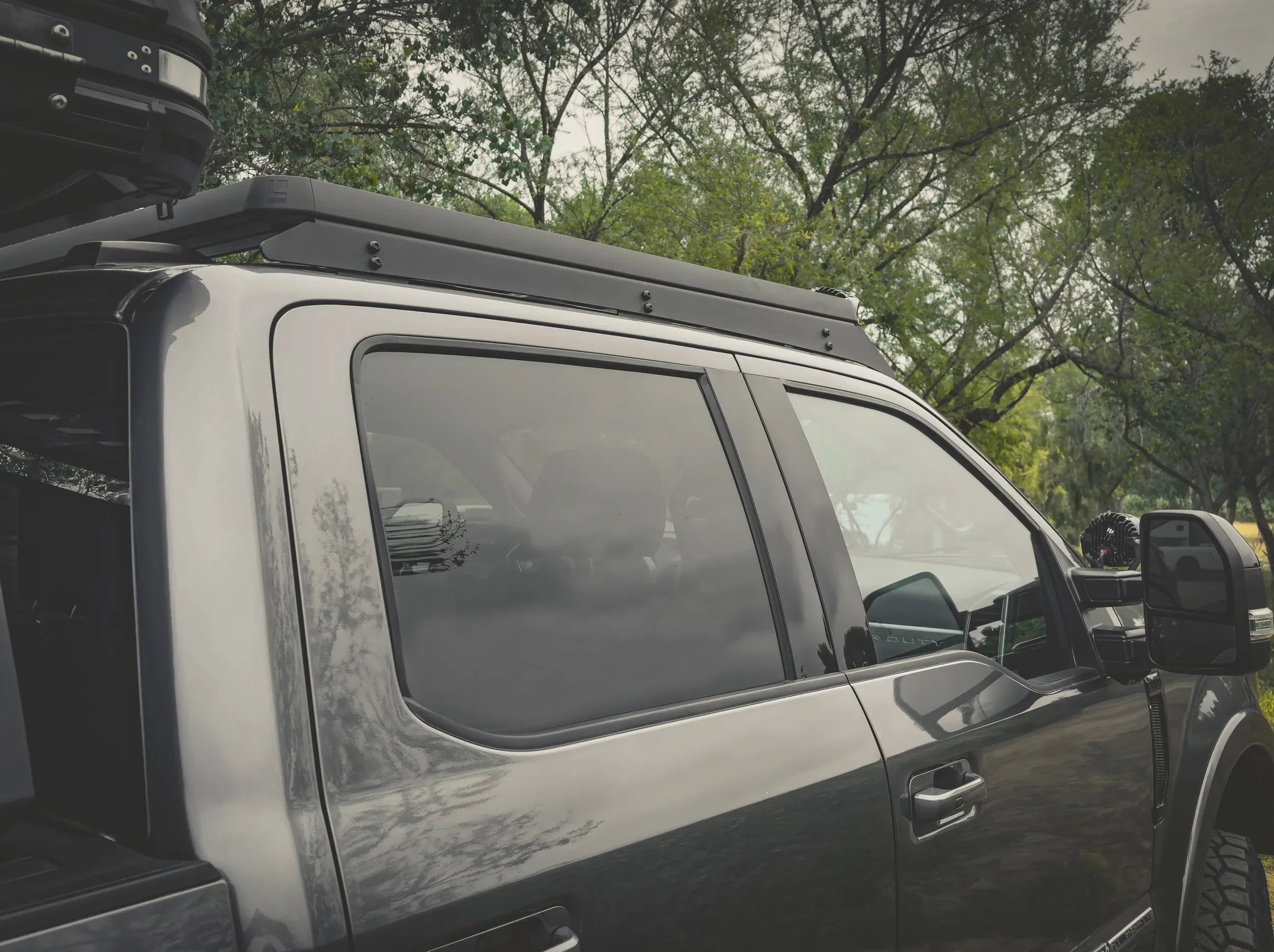

- Low-profile design: Adds 4 inches to the vehicle's height.
- No drilling required: Bolt-on installation.

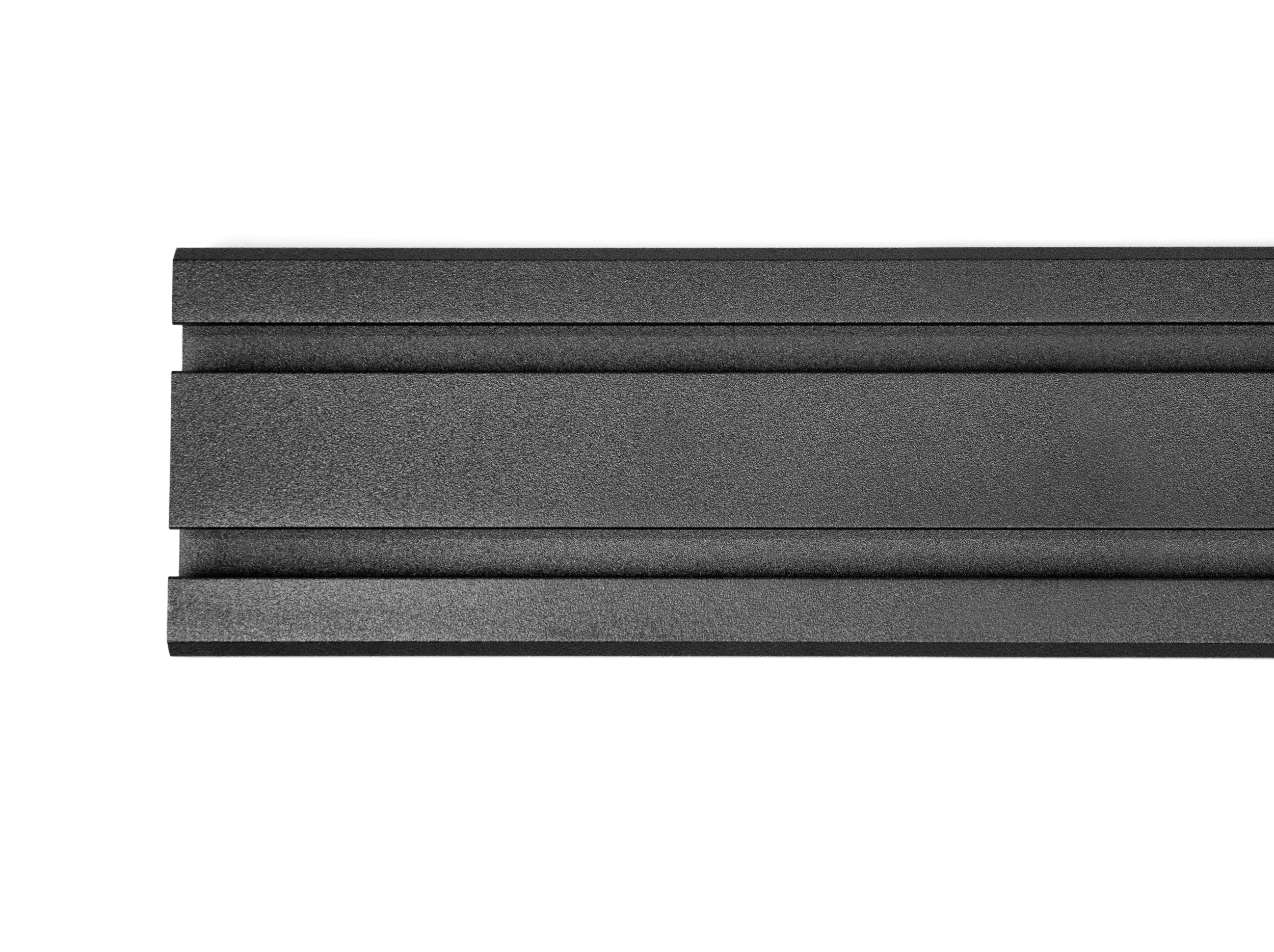

- Adjustable sliding load bars: Load bars slide into toothed channels to help position and securely mount gear.
- GearPOD ROOF integration: The side-opening GearPOD ROOF provides additional storage with a 100 lb capacity, pre-marked mounting locations for MAXTRAX and RotopaX, and internal locks for security and easy removal.
- T-track accessory compatibility: Works with Rhino-Rack, Thule, and Yakima accessories that use T-track mounting hardware.

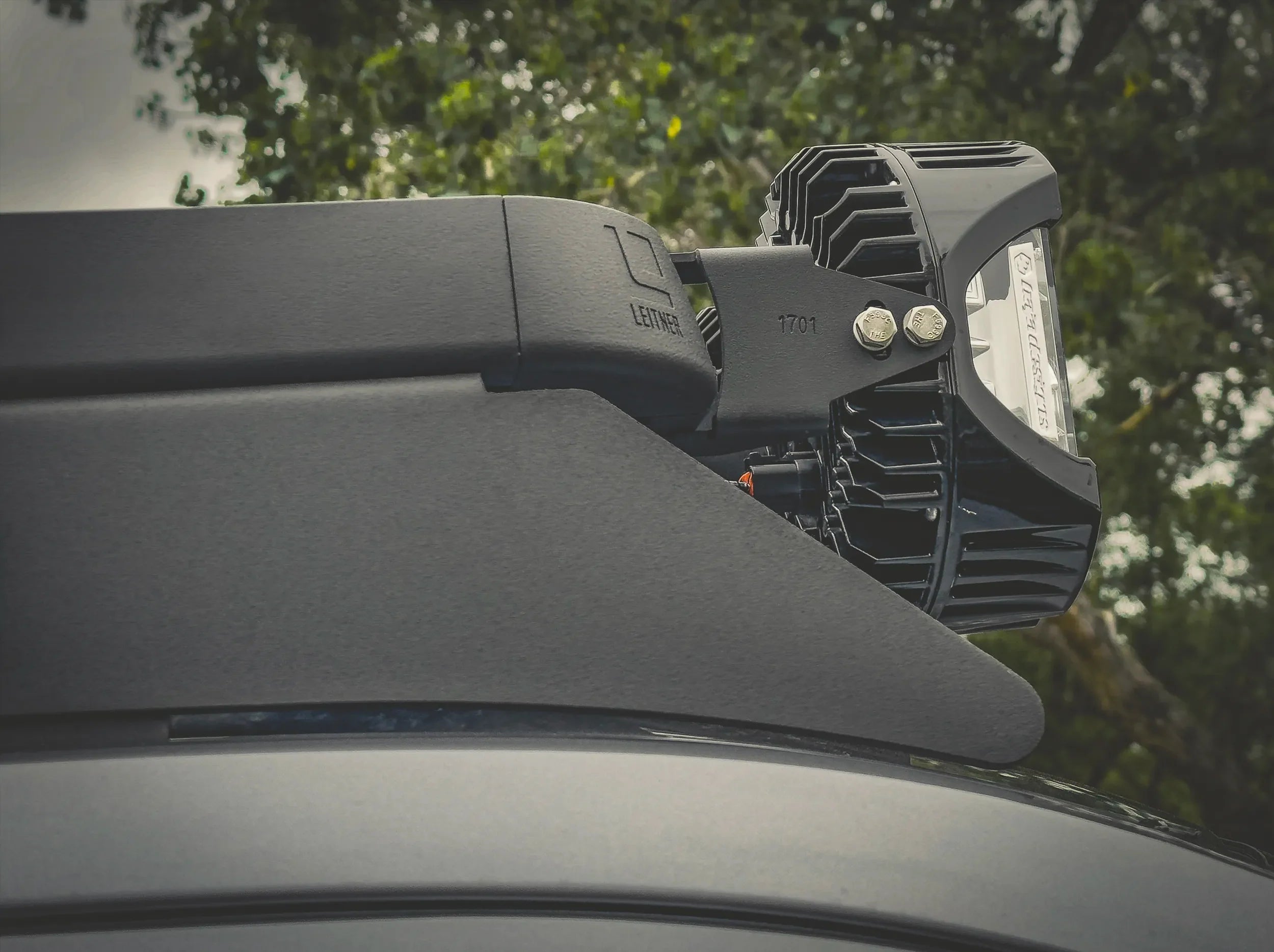

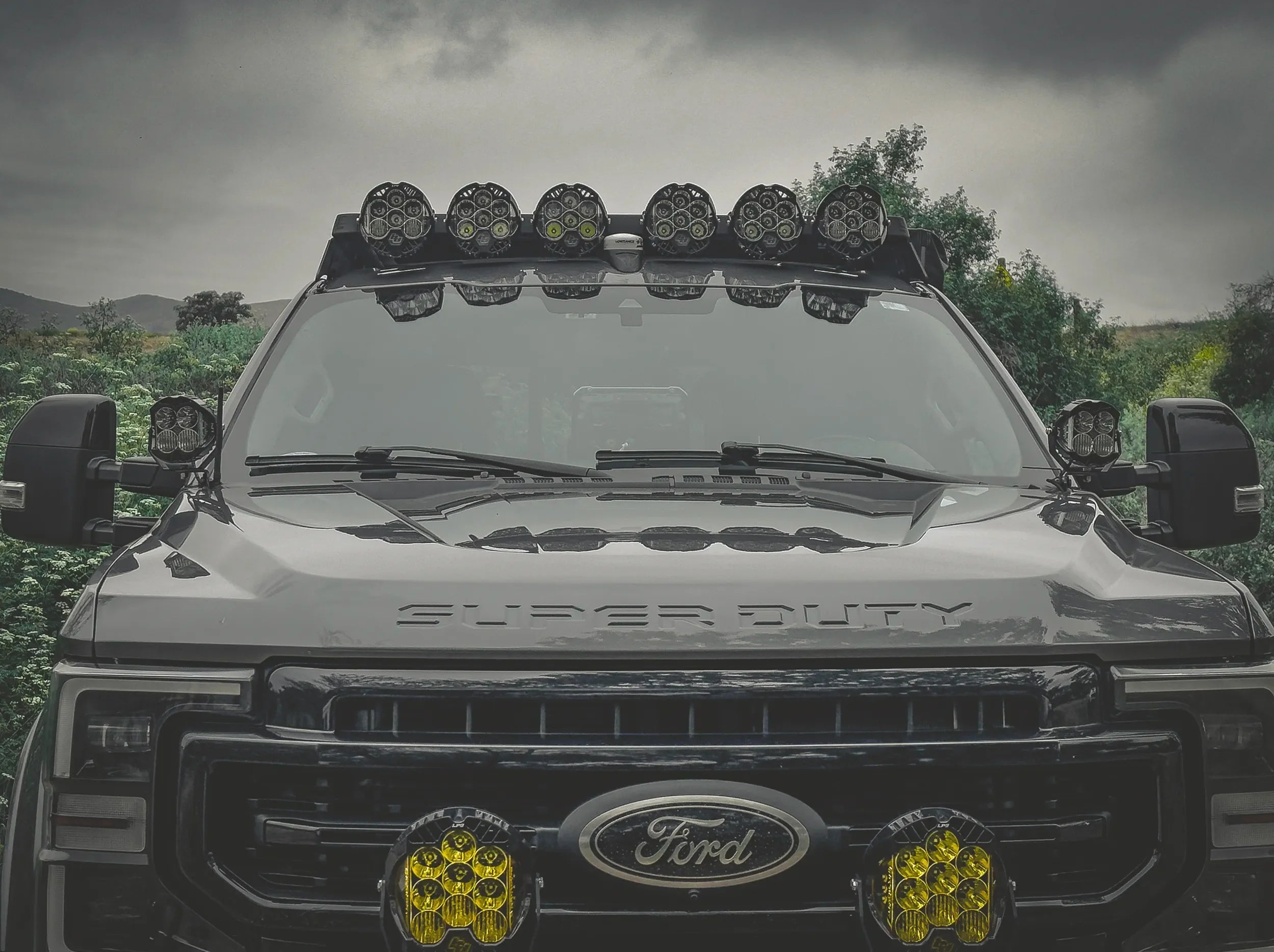

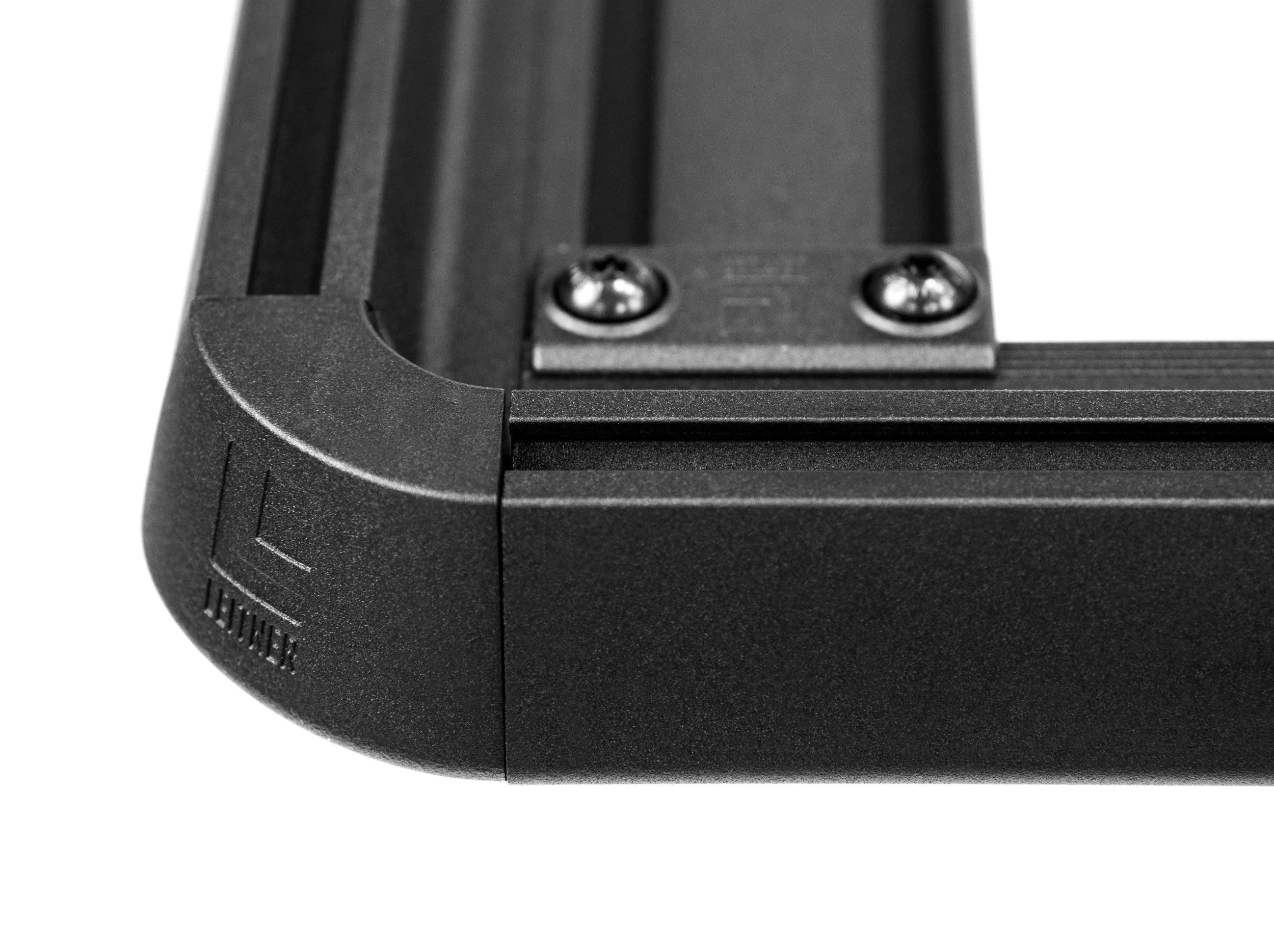

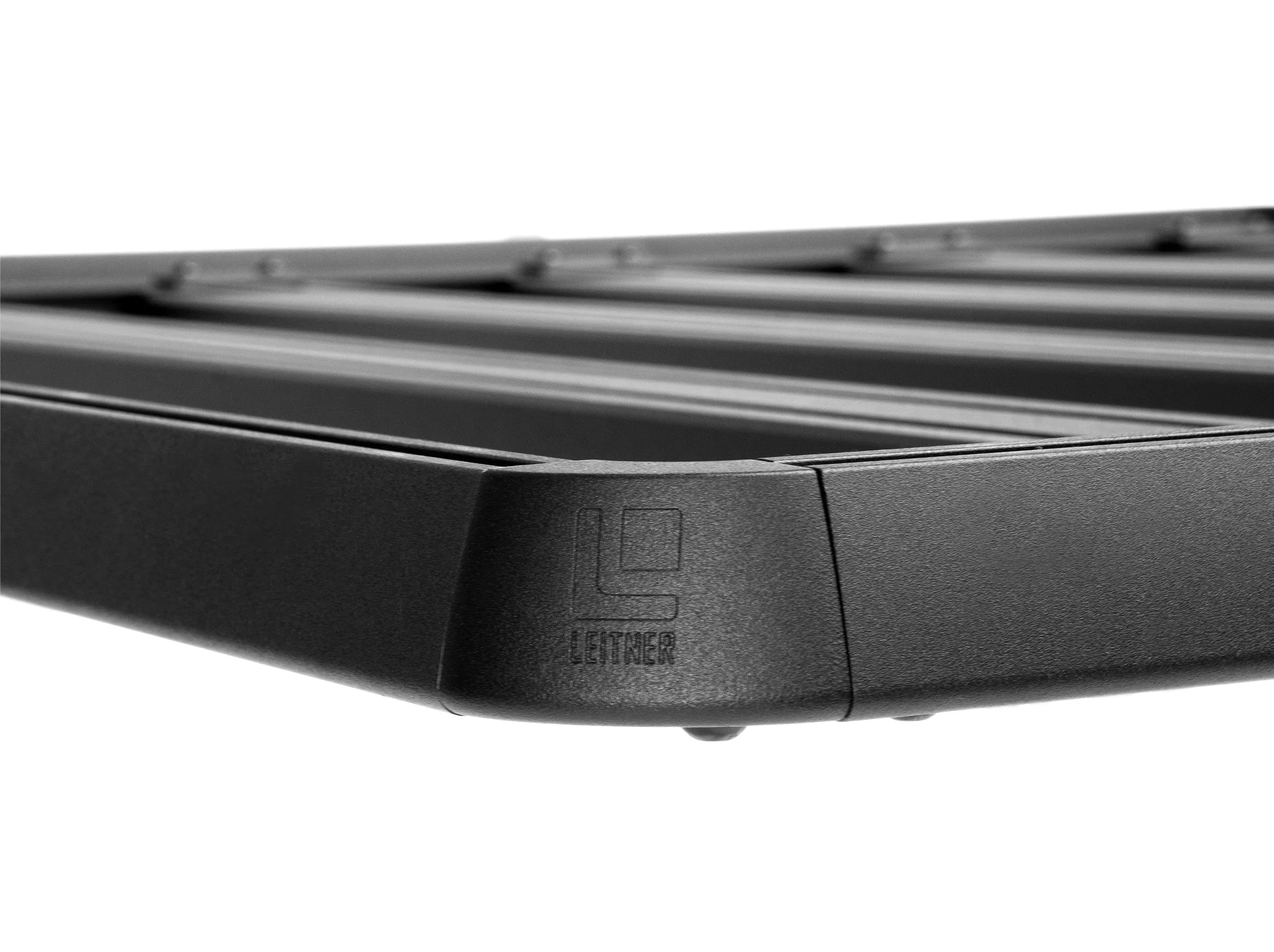

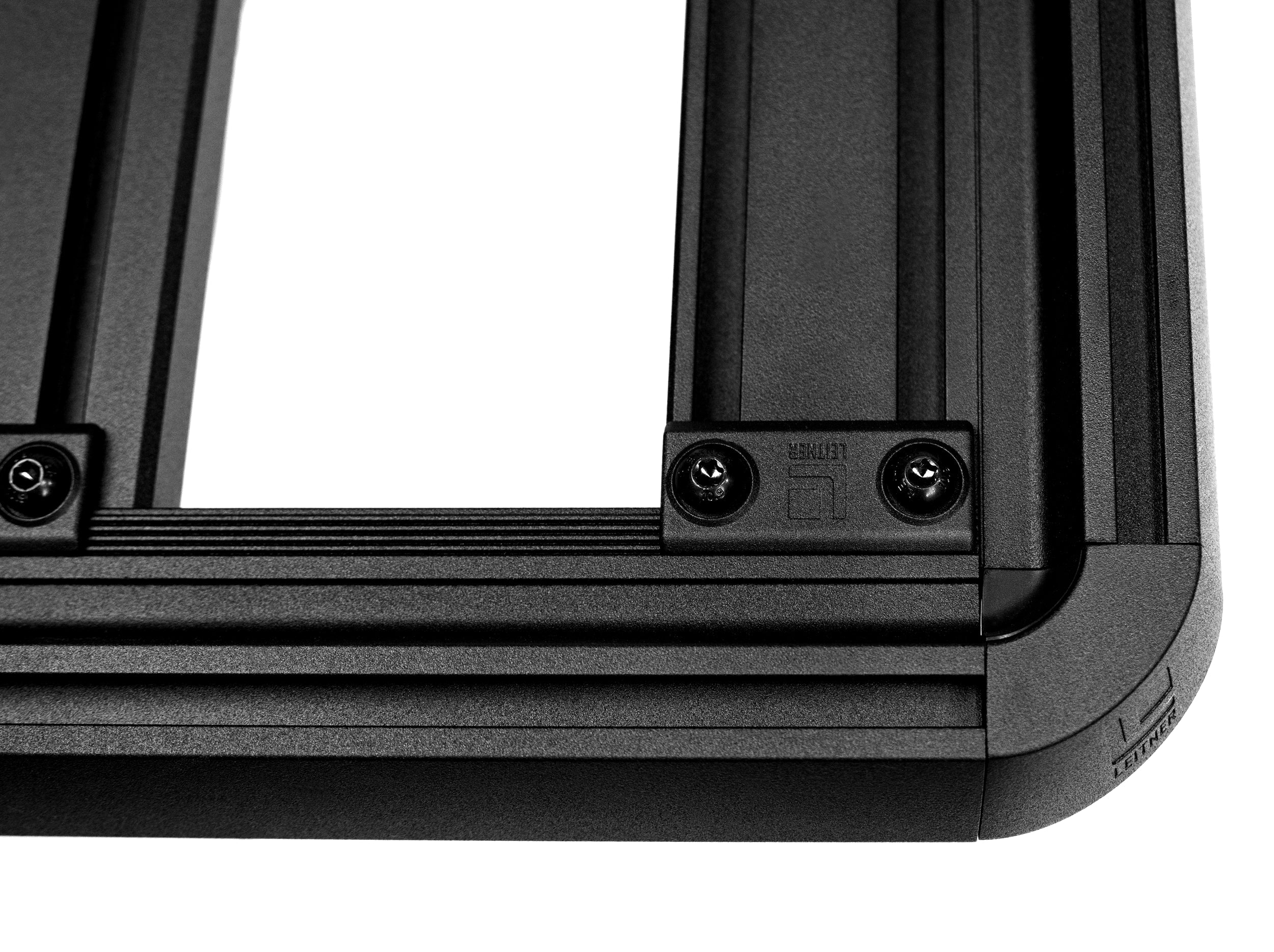

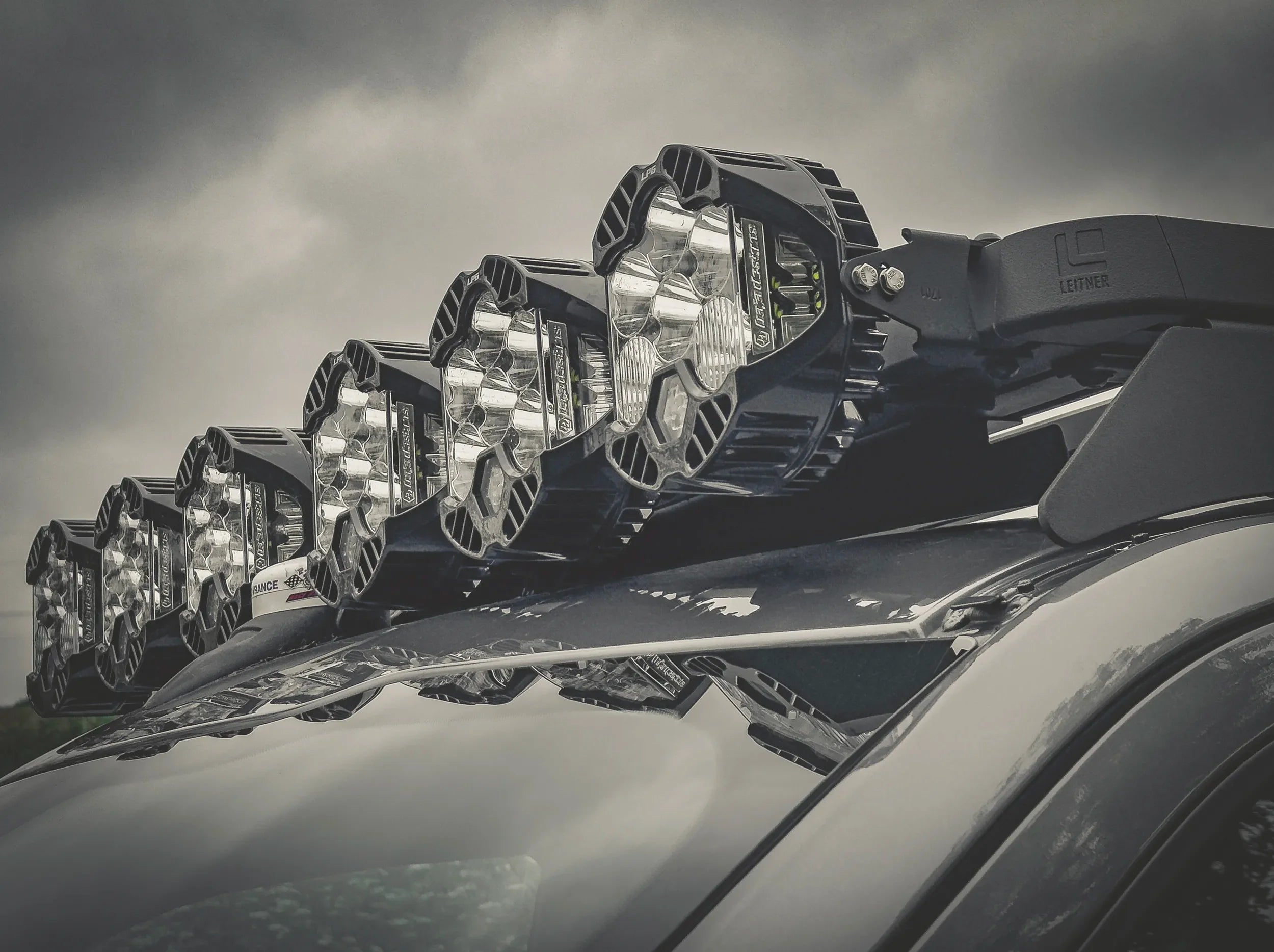

- Auxiliary lighting installation: Removable corner caps allow lighting installation without drilling or zip ties.
- Expandable platform surface: Additional load bars can be added to create a solid platform surface.

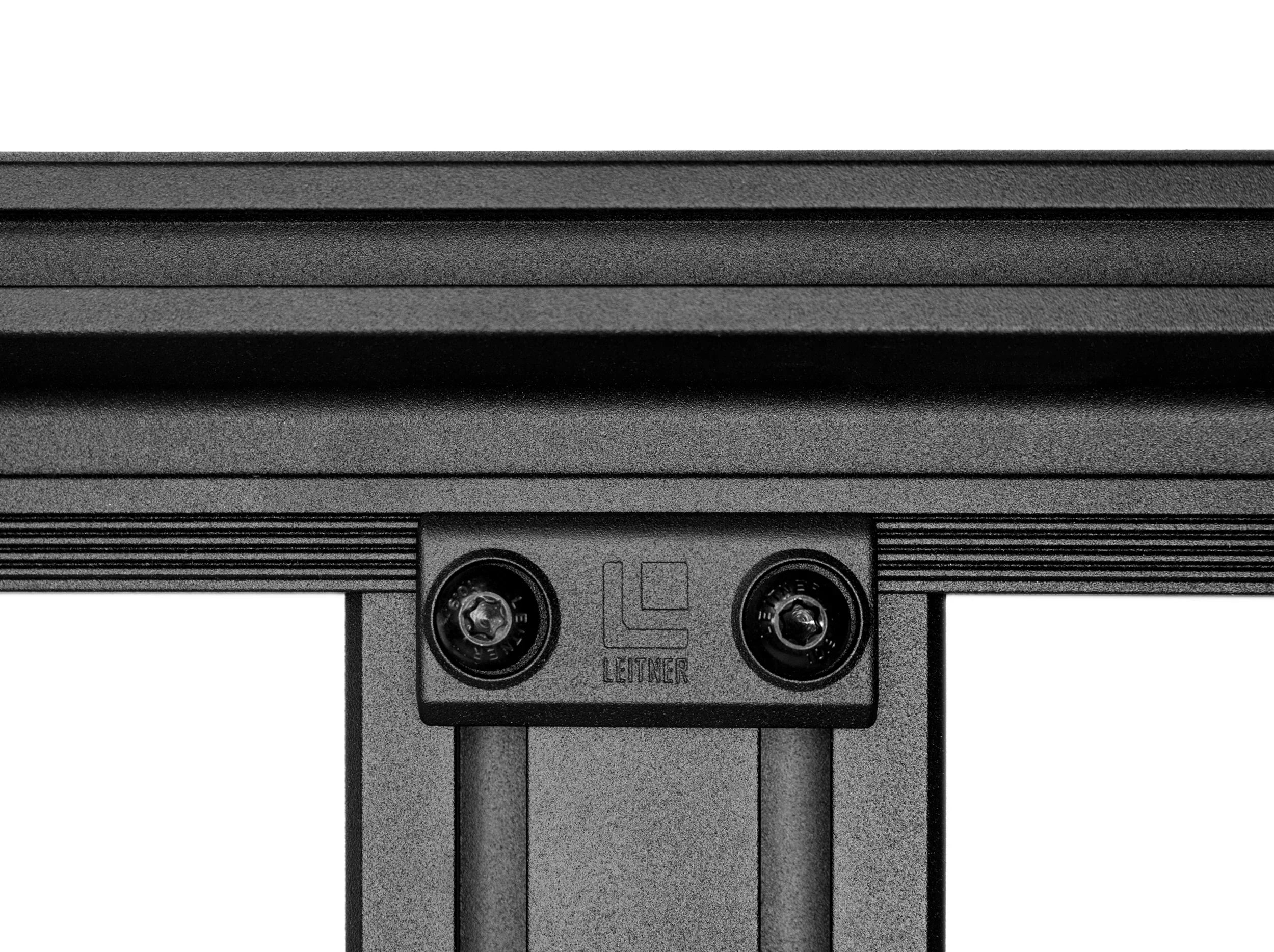

- Custom black fasteners: Grade 10.9 fasteners with zinc-nickel (Zi-Ni) coating and Loctite provide durability and vibration resistance.
Specifications
- Rack weight: 75 lbs.
- Added height: 4 inches
- Material: Aluminum alloy construction
- Fasteners: Grade 10.9 black Zi-Ni coated

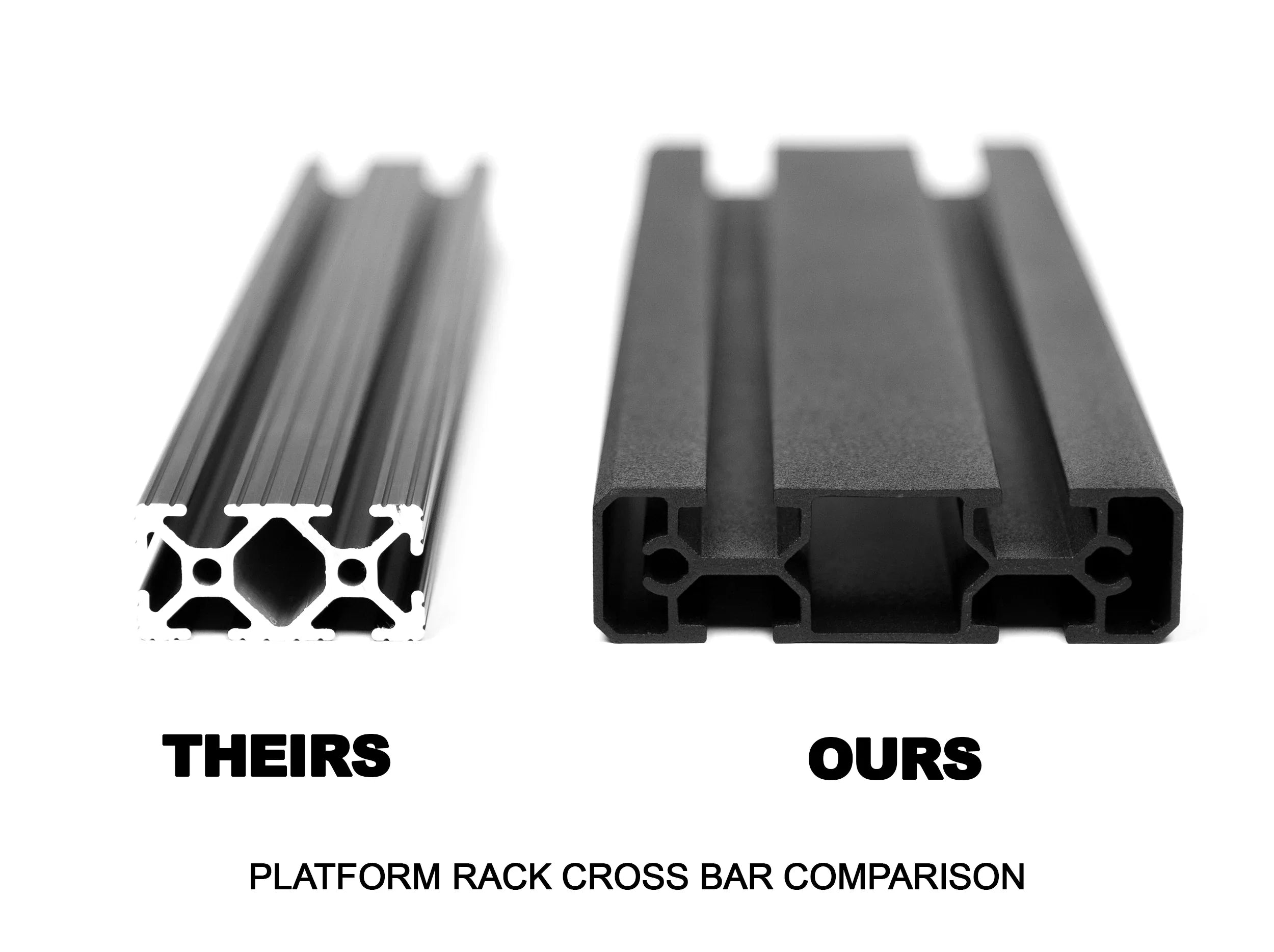

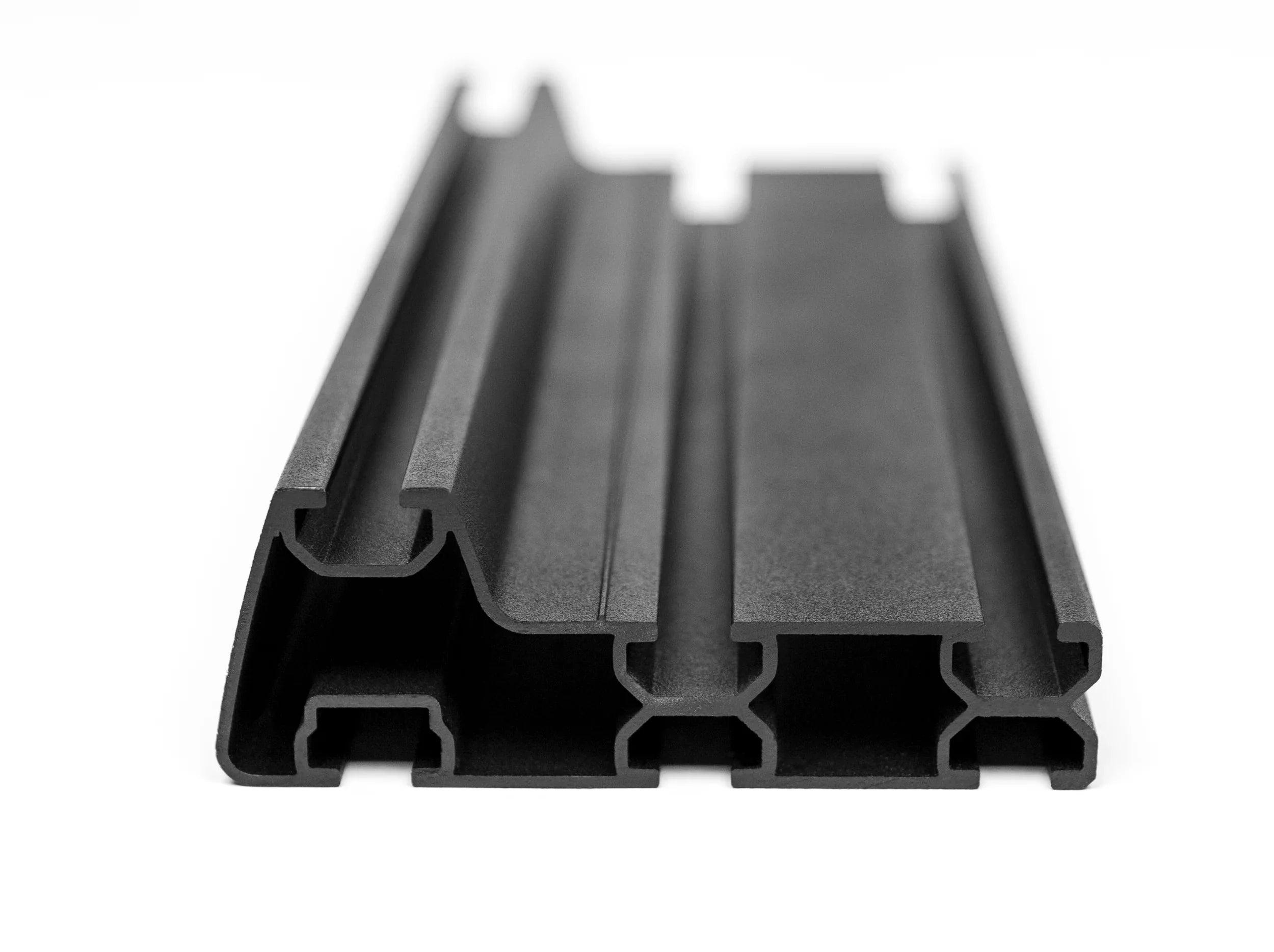

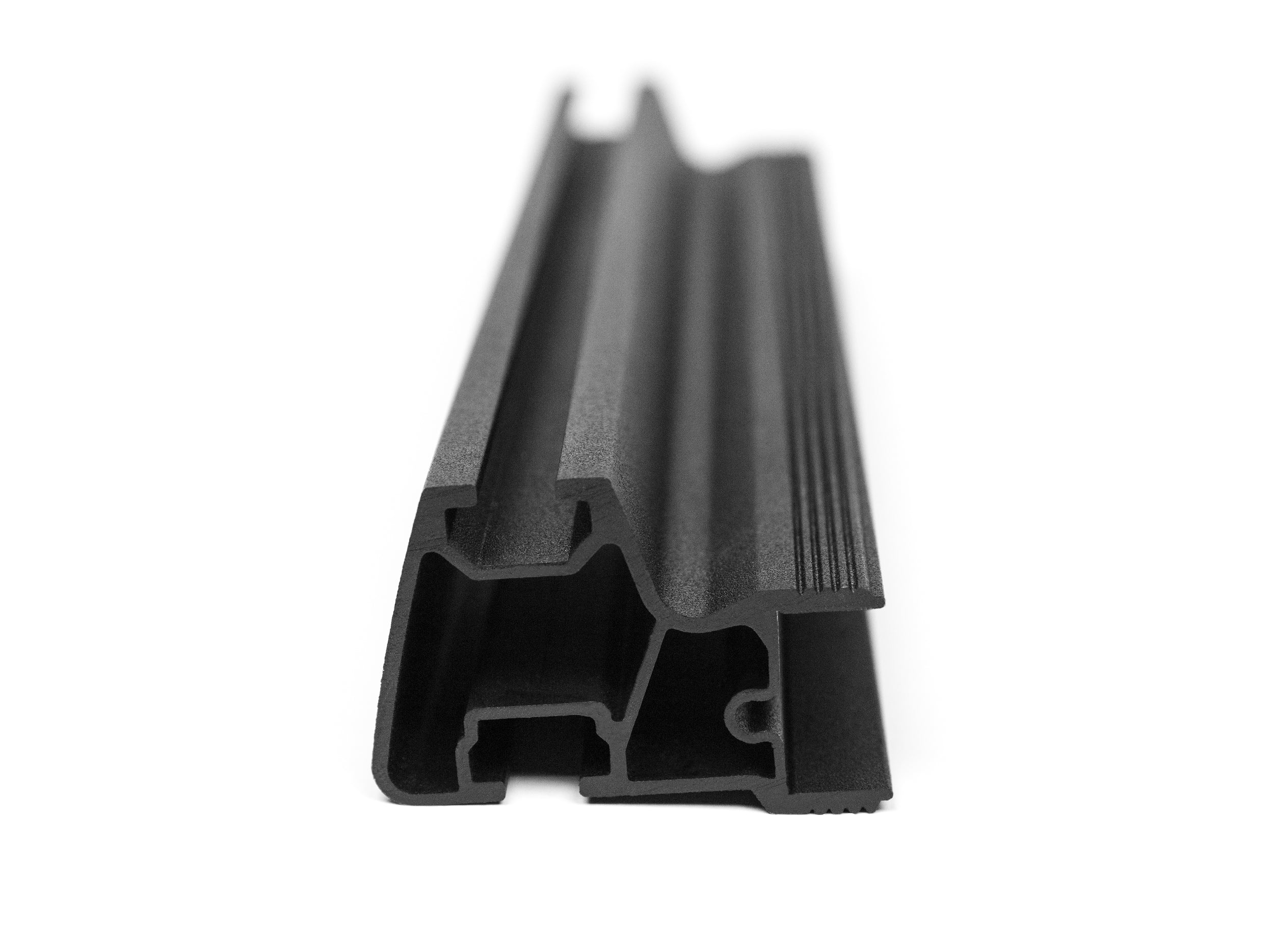

- Wall thickness: 1.5–3.0 mm multi-wall aluminum
- Wind noise reducer: Included
- Accessory compatibility: Many Thule, Rhino-Rack, and Yakima accessories
- Finish: Zinc-plated and dual-stage powder coat
- Manufacturing: Designed, engineered, and manufactured in the USA
Rack Load Capacities
- Dynamic load capacity, off-road: 300 lbs.
- Dynamic load capacity, on-road: 500 lbs.
- Static load capacity, parked: 1,000 lbs.
Vehicle roof limits: Always check your vehicle manufacturer's recommended roof weight limit. Do not exceed the applicable vehicle, rack, or accessory load limits.
The ACS ROOF draws on 10 years and hundreds of thousands of off-road miles of testing and development of Leitner's Active Cargo System modular truck bed rack and cargo system. Built in Corona, California.
