Description

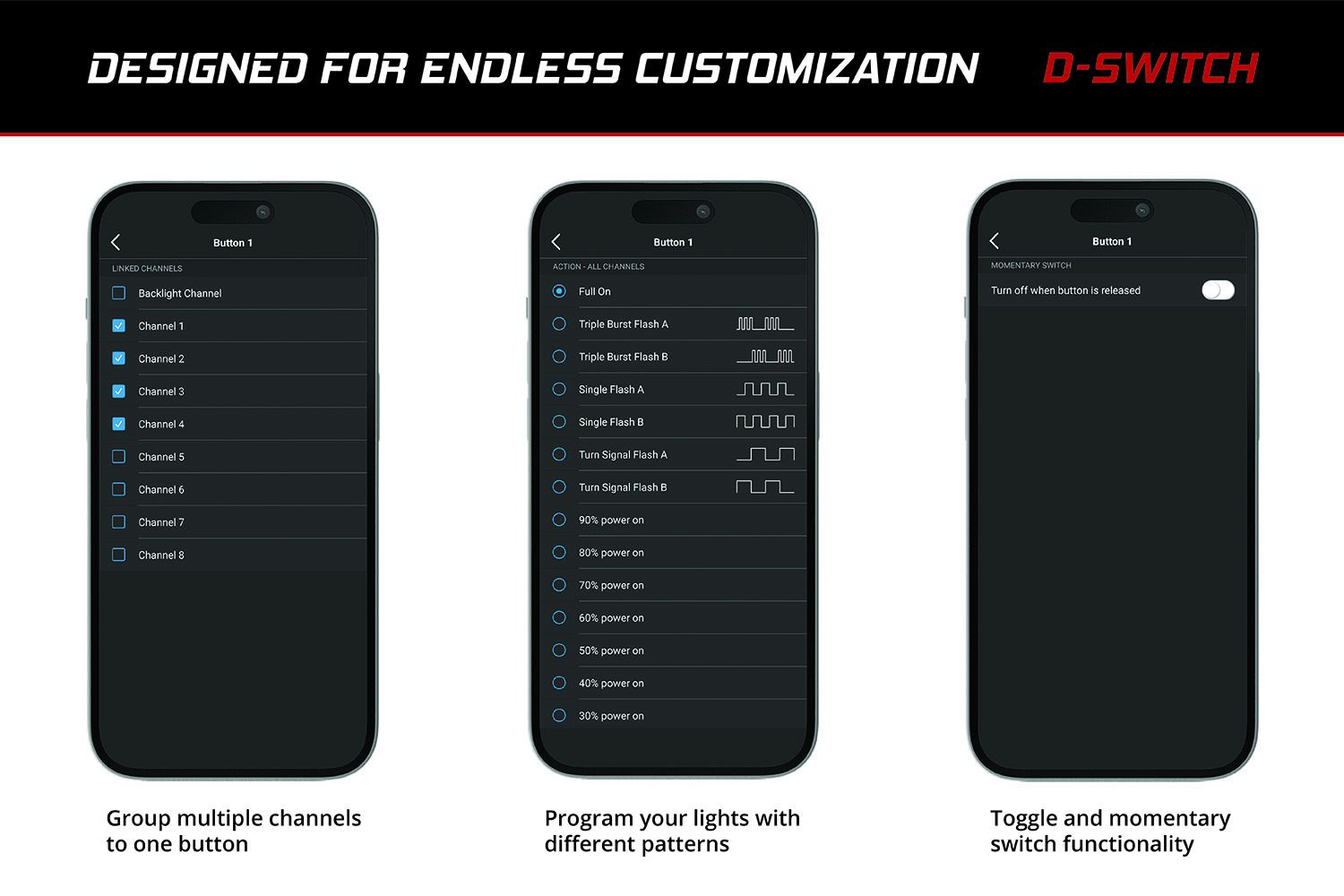

- Group and control multiple outputs with a single button.

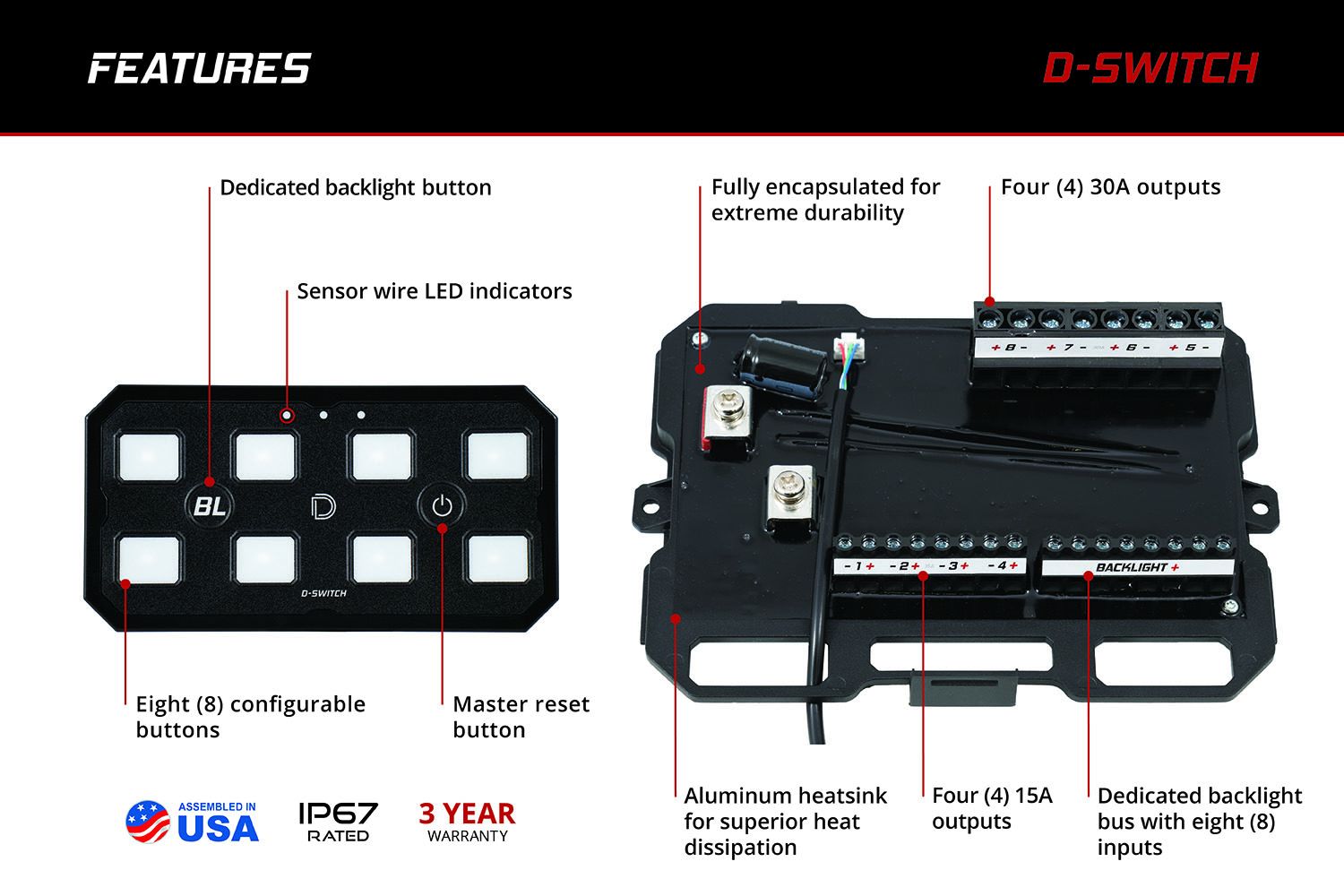

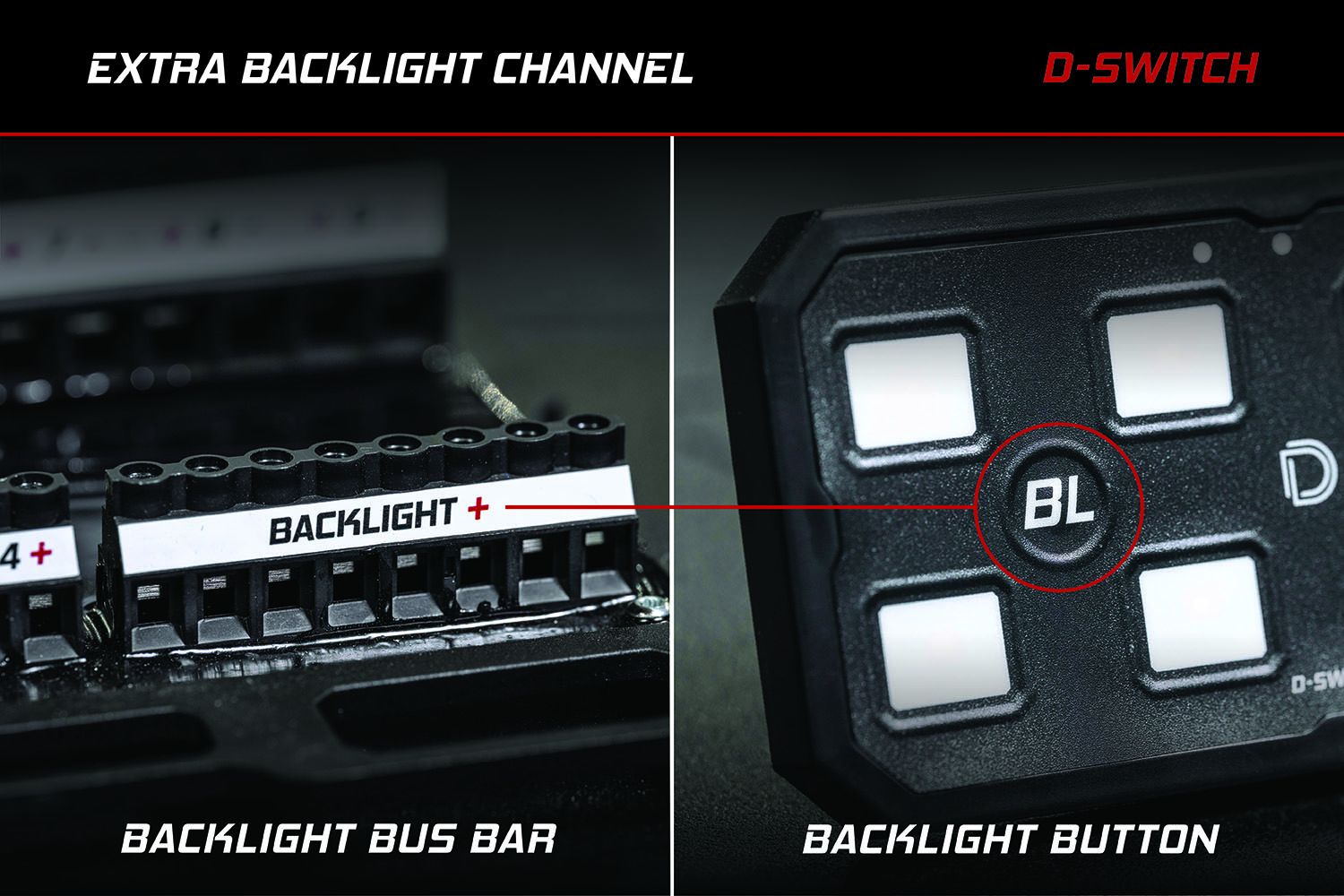

- Dedicated backlight channel to control your accent lighting.

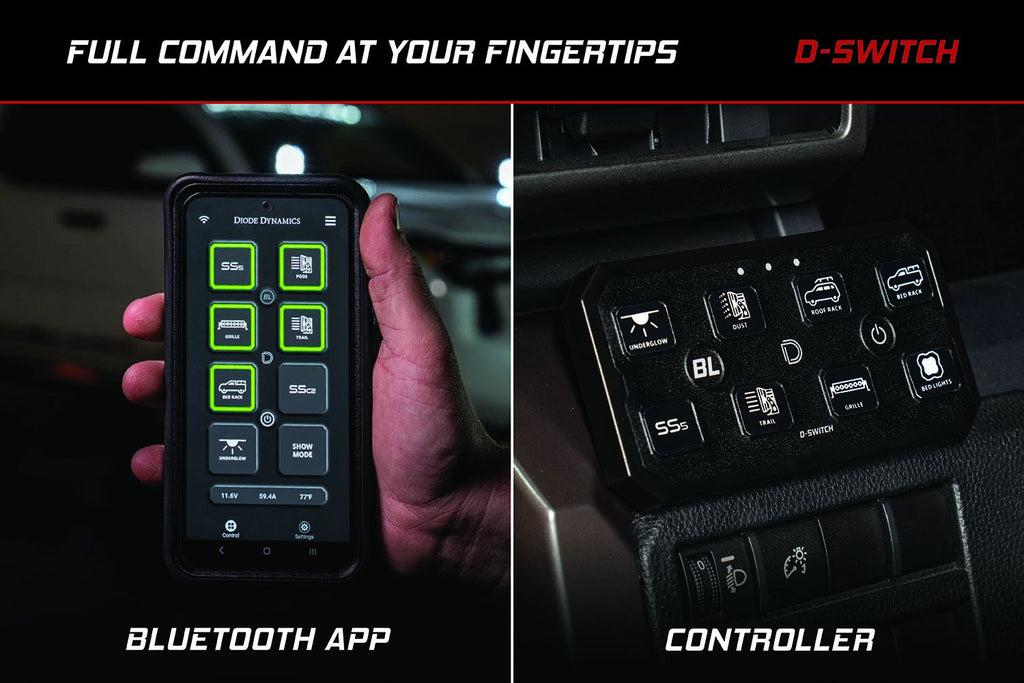

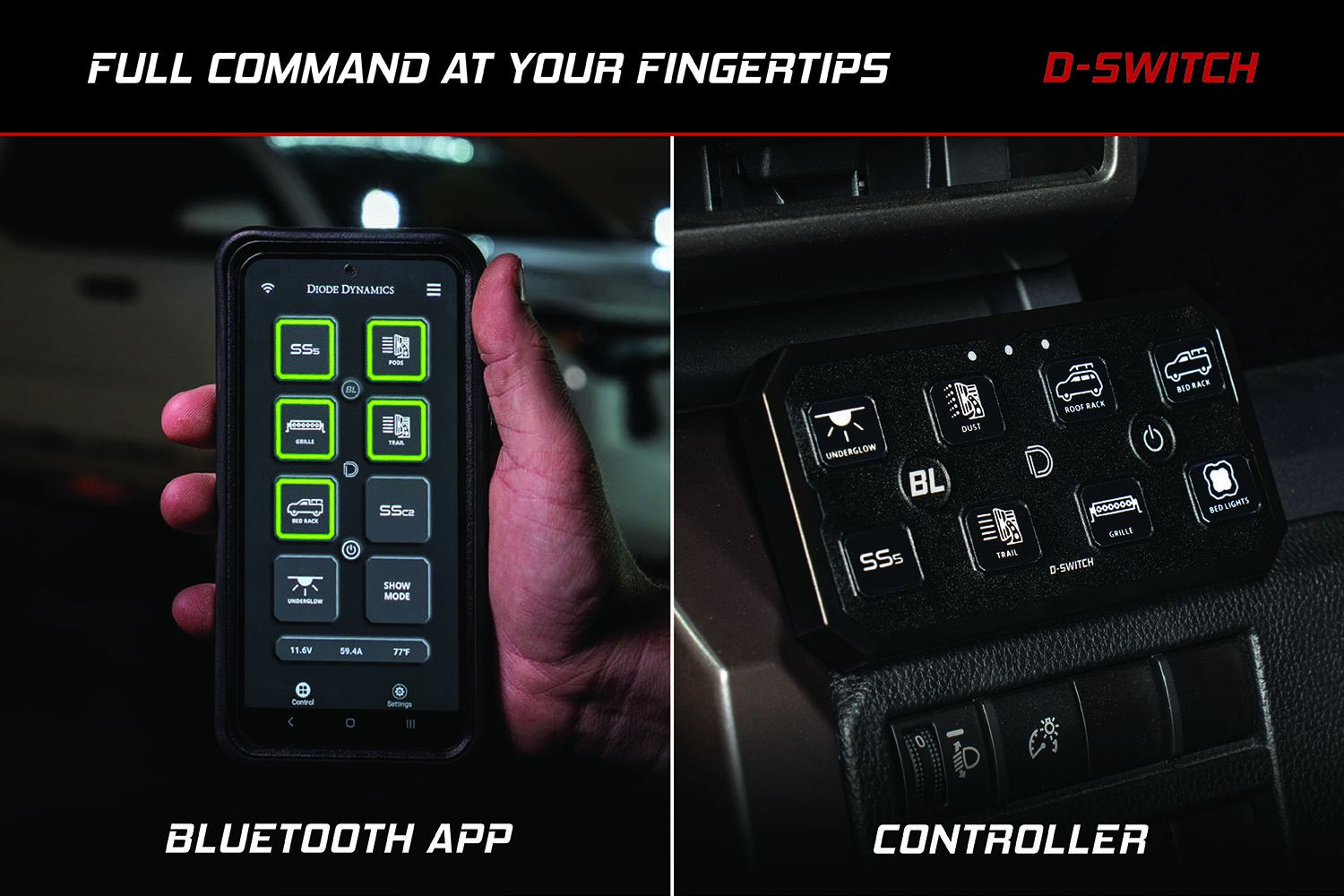

- Fast, responsive Bluetooth App - no lagging or loading screens!
- Solid-state, fully-encapsulated design for extreme durability.
- Three trigger wires for OEM-like control through vehicle signals.
- Engineered and assembled in USA.
Channel Power: Channels 1 - 4: 15A (per channel), Channels 5 - 8: 30A (per channel), Backlight 15A (total)
Max Current: 125A
Electrical Compatibility: DC
Operating Voltage: 9-16V
Wire Size: 4AWG (Battery), 22AWG (Sensors), 26AWG (Controller)
Operating Temperature: -40C to 120C (-40F to 250F)
Materials: FR4 PCB, Aluminum Casting, ASA Plastic
Cooling: Passive, Pin-Fin heatsink
Intrusion Ratings: IP67 Weatherproof

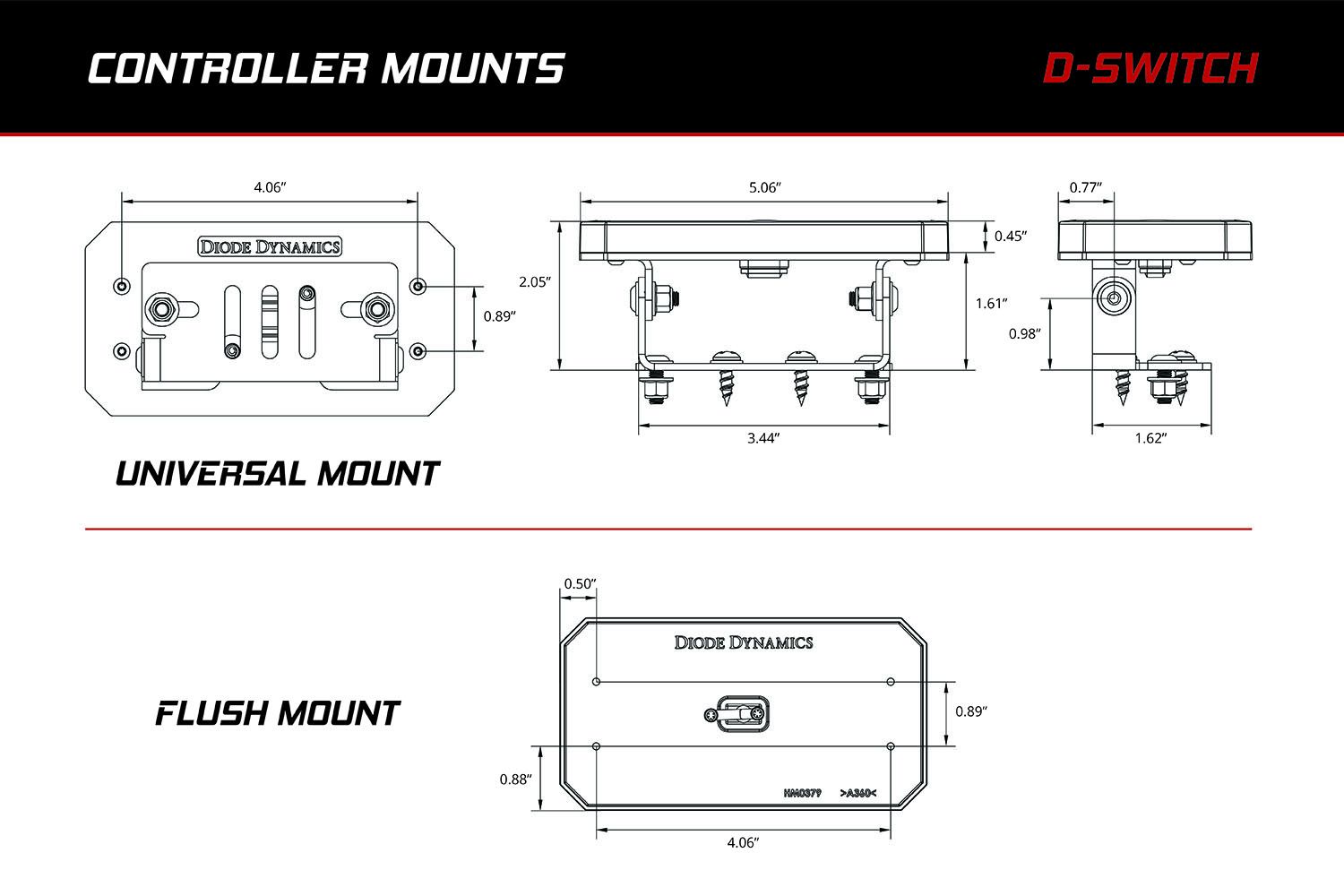

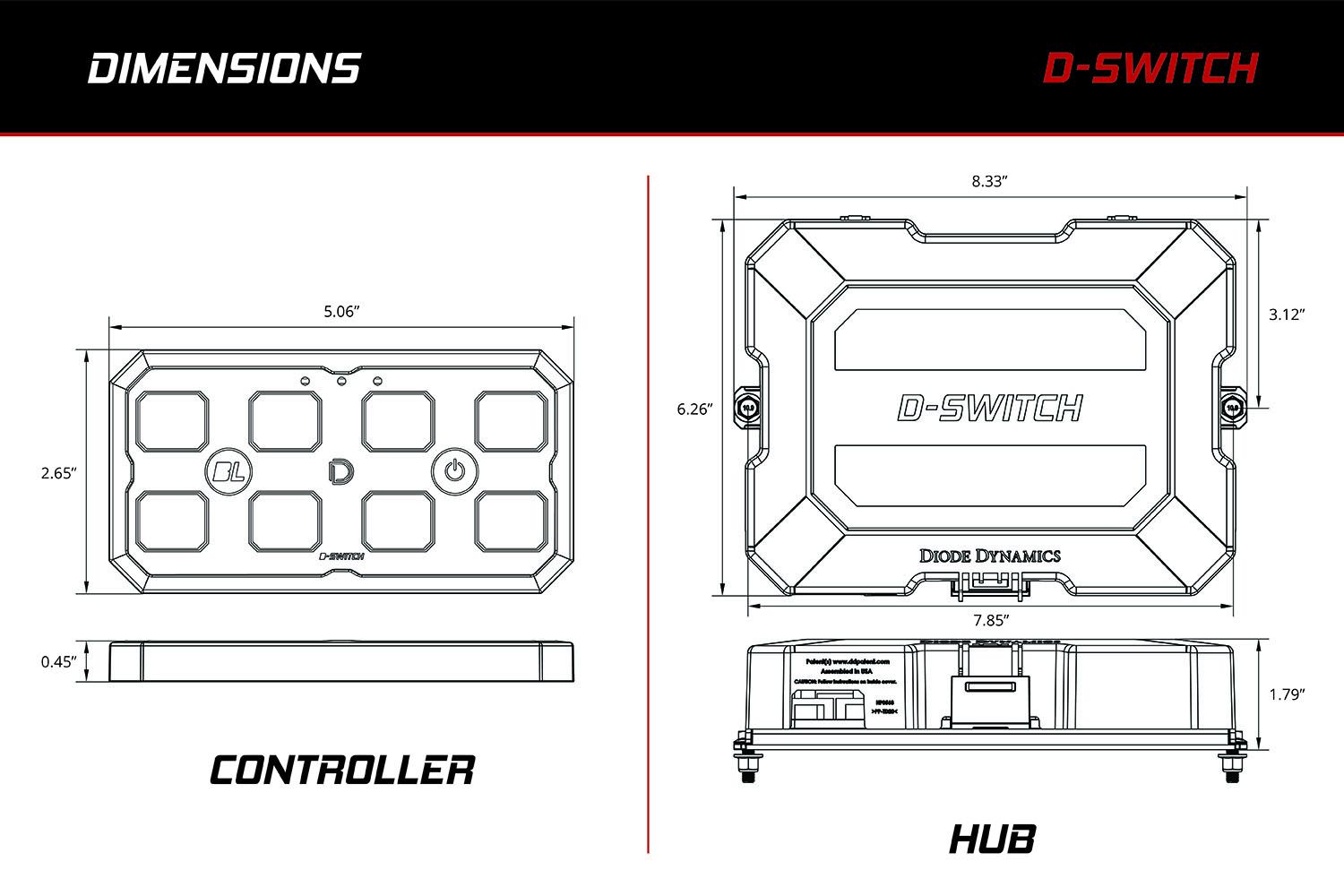

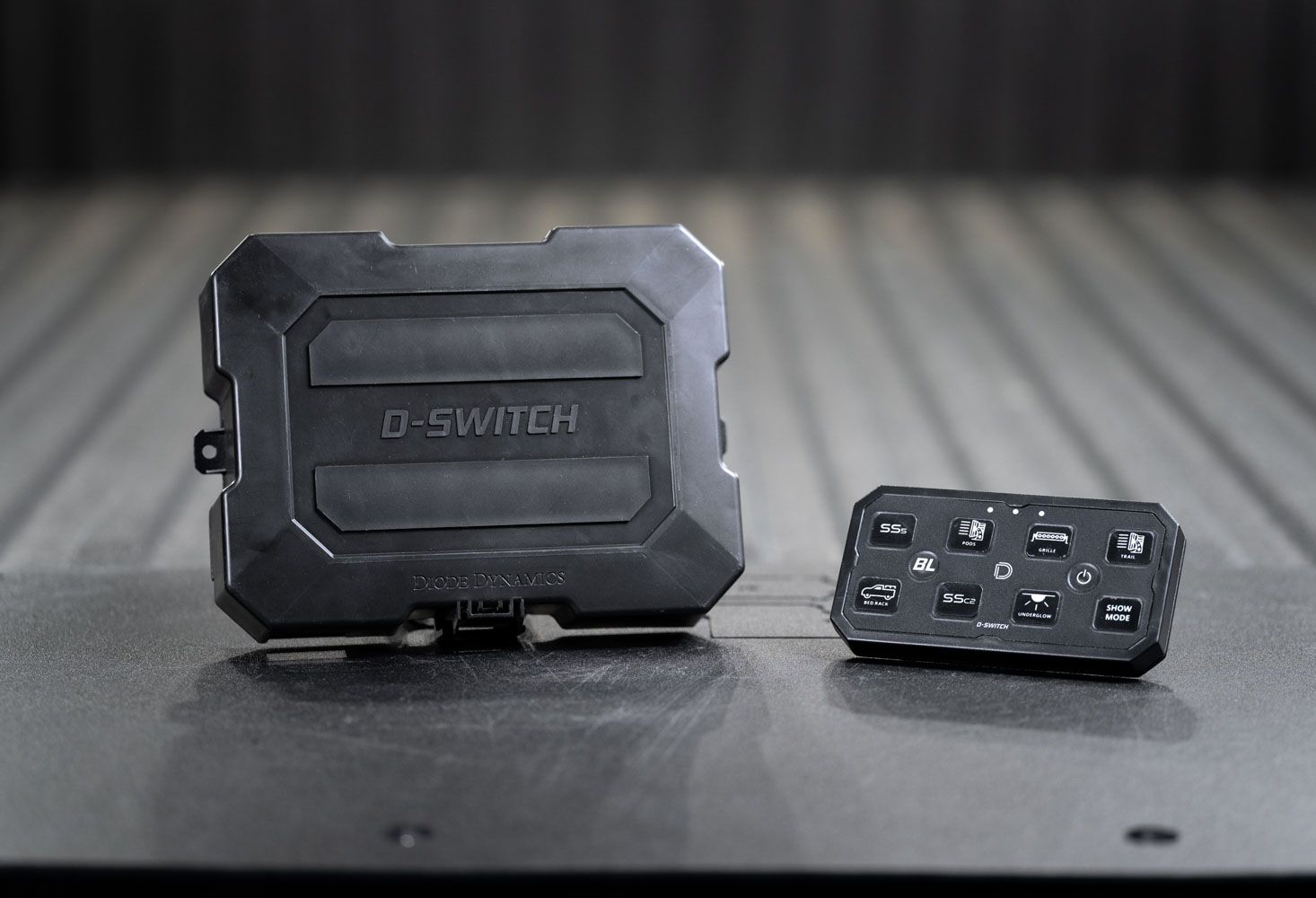

Product Dimensions (in): Controller: 5.06" x 2.66" x 0.45", Hub: 8.33" x 6.26" x 1.79"
Unit Weight (lb): 1.9
Product Weight (lb): 4.7
Shipped Weight (lb): 5.6
