Description

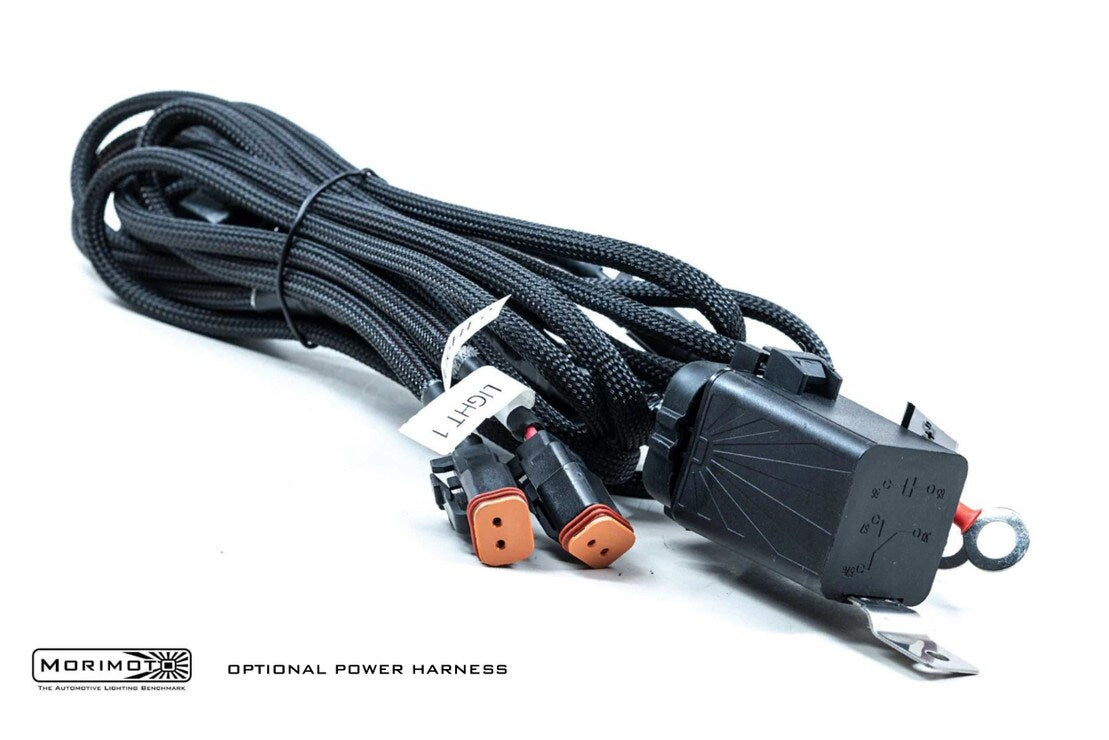

The Morimoto 1Banger LED Pods have been developed from the ground up to set a new standard in their segment, and the same goes for the optional wire harness. If you want the best, bingo. Not one component on the harness was overlooked for the sake of cost or simplicity. Triple sealed proprietary 4-pin relay with hanger. Proprietary over-molded inline fuse holder with 20A mini fuse. DT06-2S female outputs with dual seals. Stainless steel power and ground terminals. Proprietary M-Spec push button switch with Yellow-LED backlight
TECH SPECS
-
NOTE:These specifications are per pod / each!
-
INTENSITY (WHITE):29,000 Cd (290 lux @ 10m)
-
INTENSITY (YELLOW):19,900 Cd (199 lux @ 10m)
-
INPUT:Integrated Deutsch DT 2-Pin
-
POWER (STABILIZED):14.5w
-
CURRENT:1.07A @ 13.5V DC
-
PEAK LUMINOSITY (RAW):1,000 lm
-

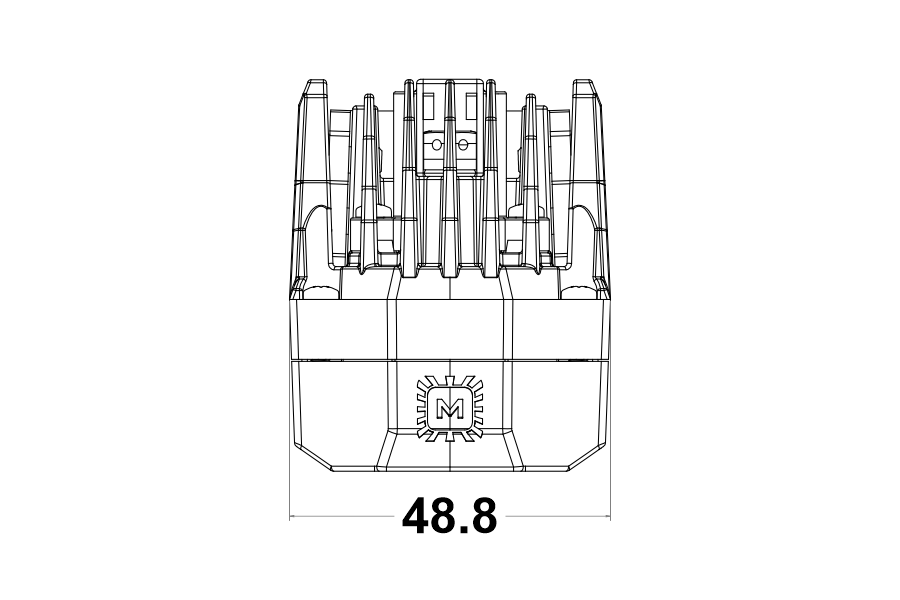

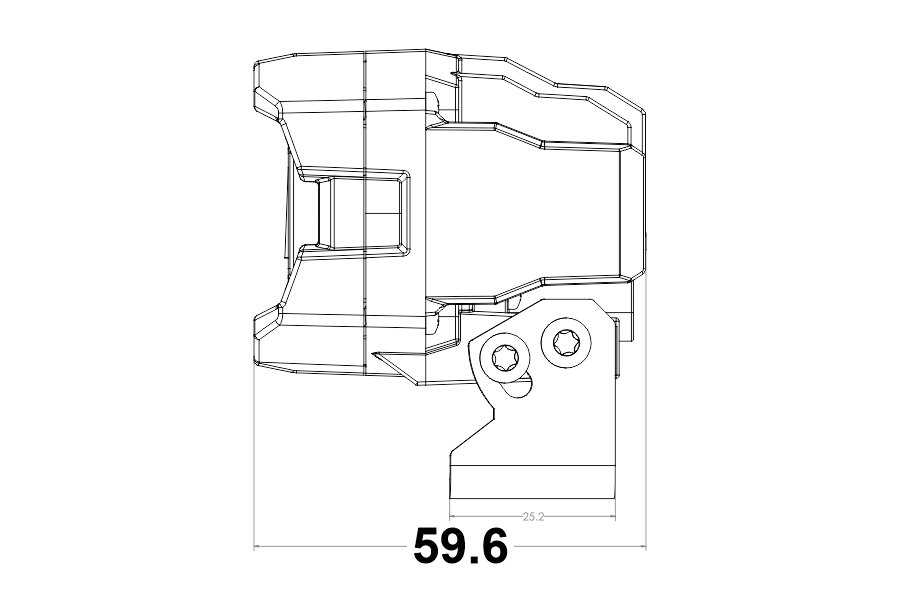

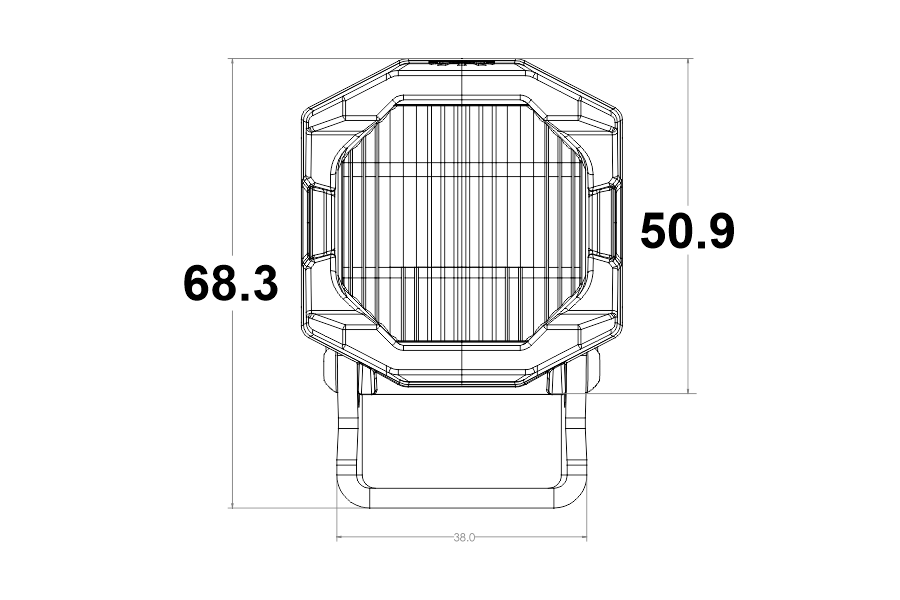

DIMENSIONS:48.8mm W, 50.9mm H, 59.6mm D
-
COLOR:2700K (Yellow) or 5700K (White)
-
LIGHT SOURCE:1x Osram HX Boost
-
MATERIAL:Makrolon LED PC (Lens), Powdercoated Die Cast Aluminum (Housing)
INCLUDED:
-

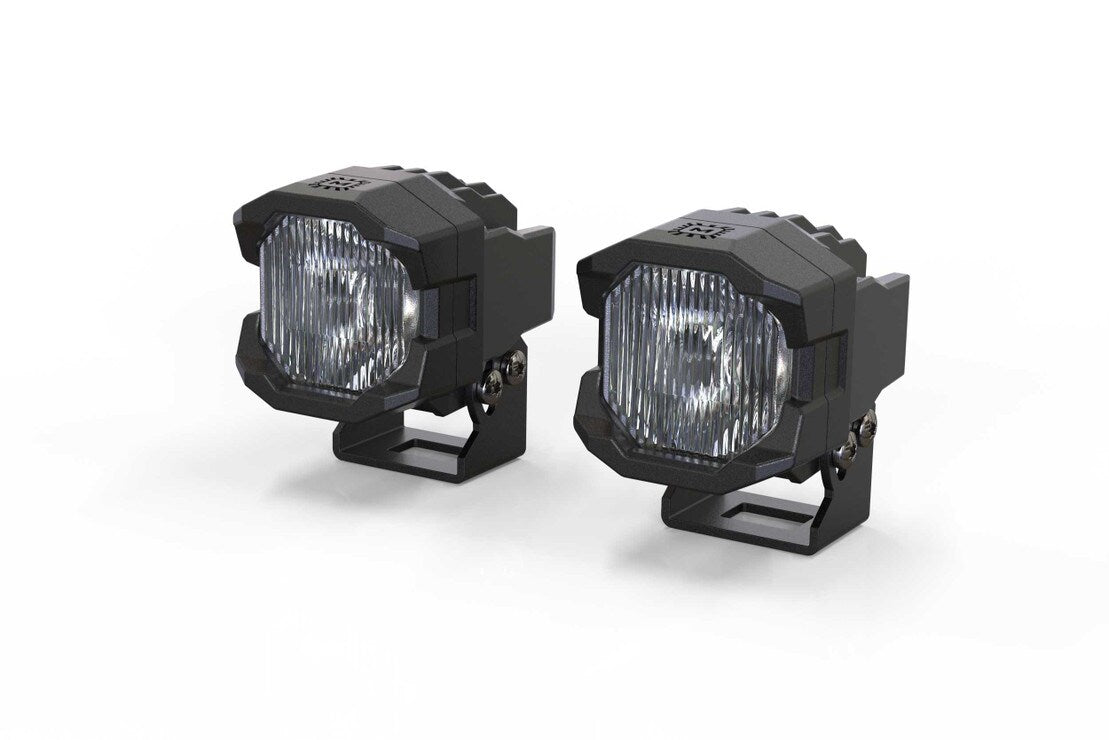

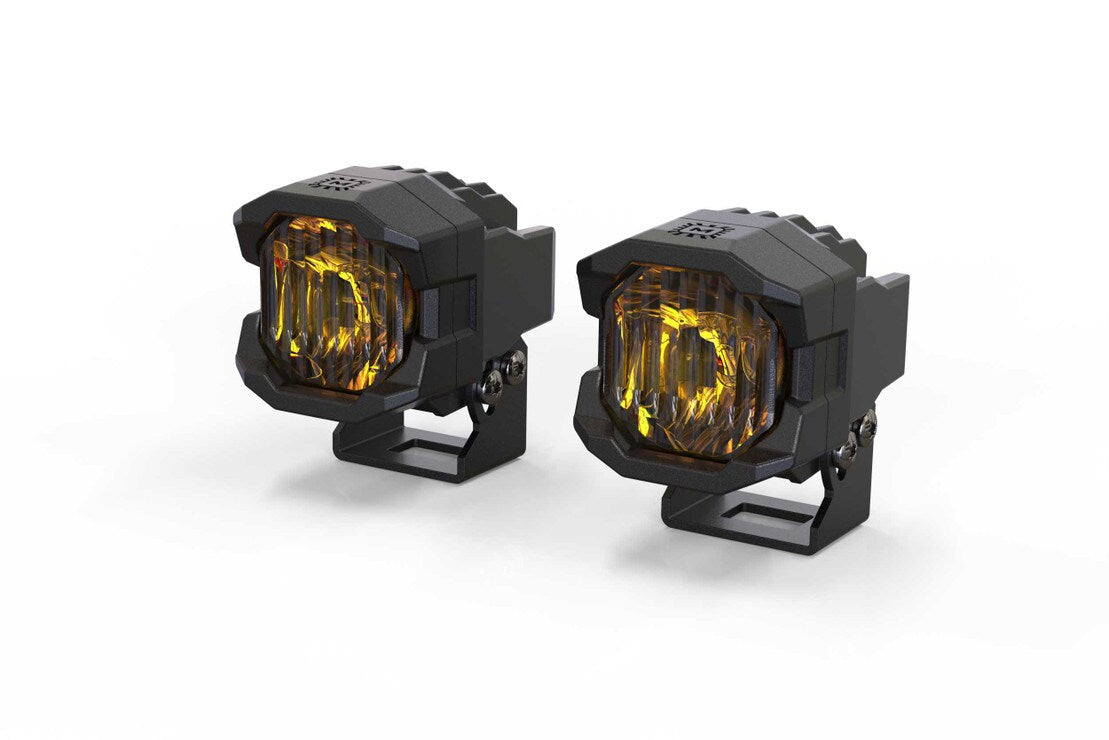

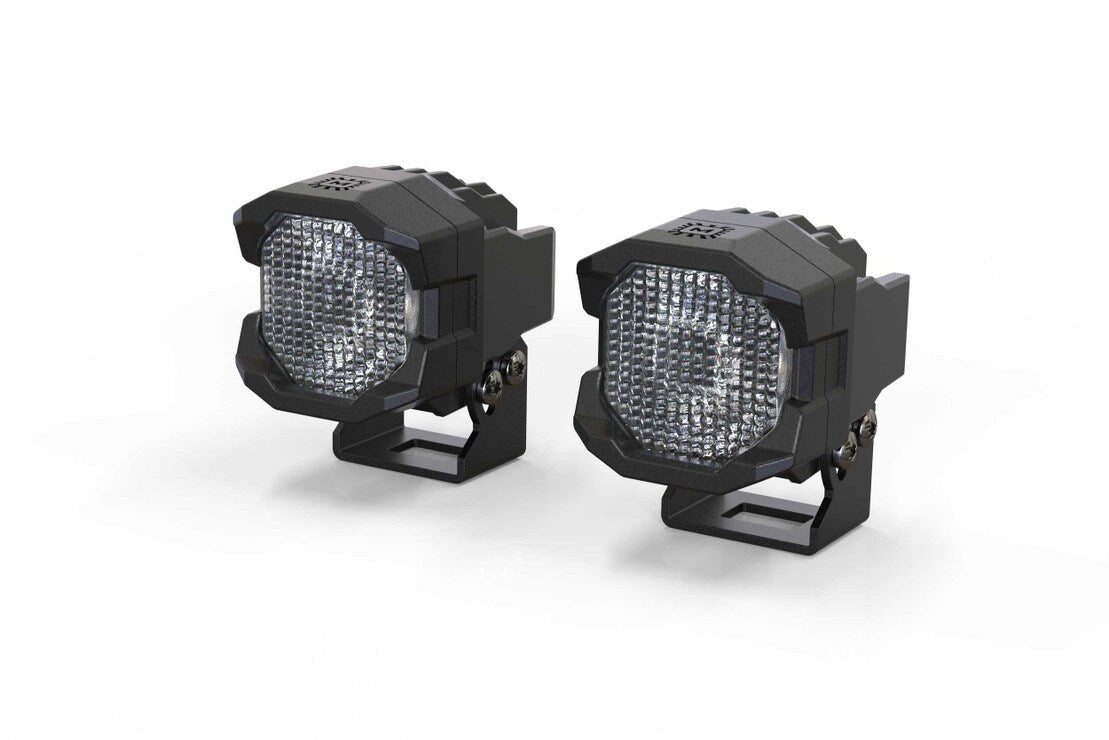

2x (One Pair) Morimoto 1Banger HXB Combo (White or Yellow)
-
BRACKETS:2x (One Pair) Universal U-Shape Mounts
-
HARDWARE:Complete pack (stainless steel)
-
OPTIONAL WIRING: 1x Morimoto 1Banger Switched Relay Harness or DT Connectors
