Description

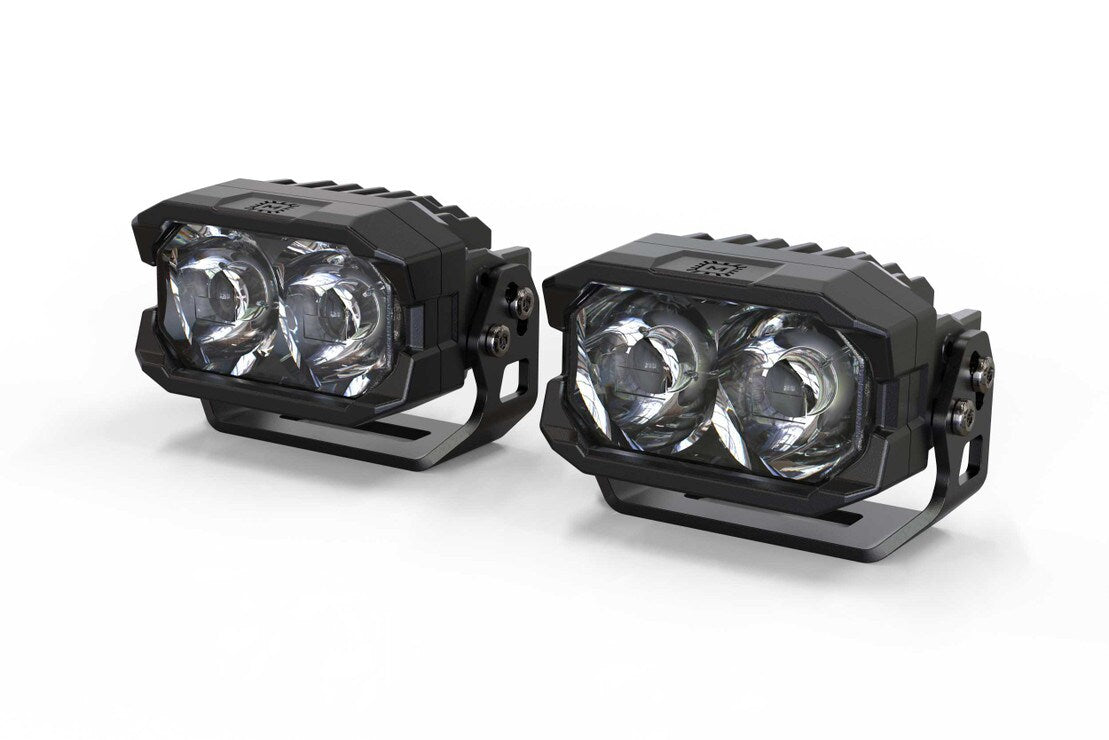

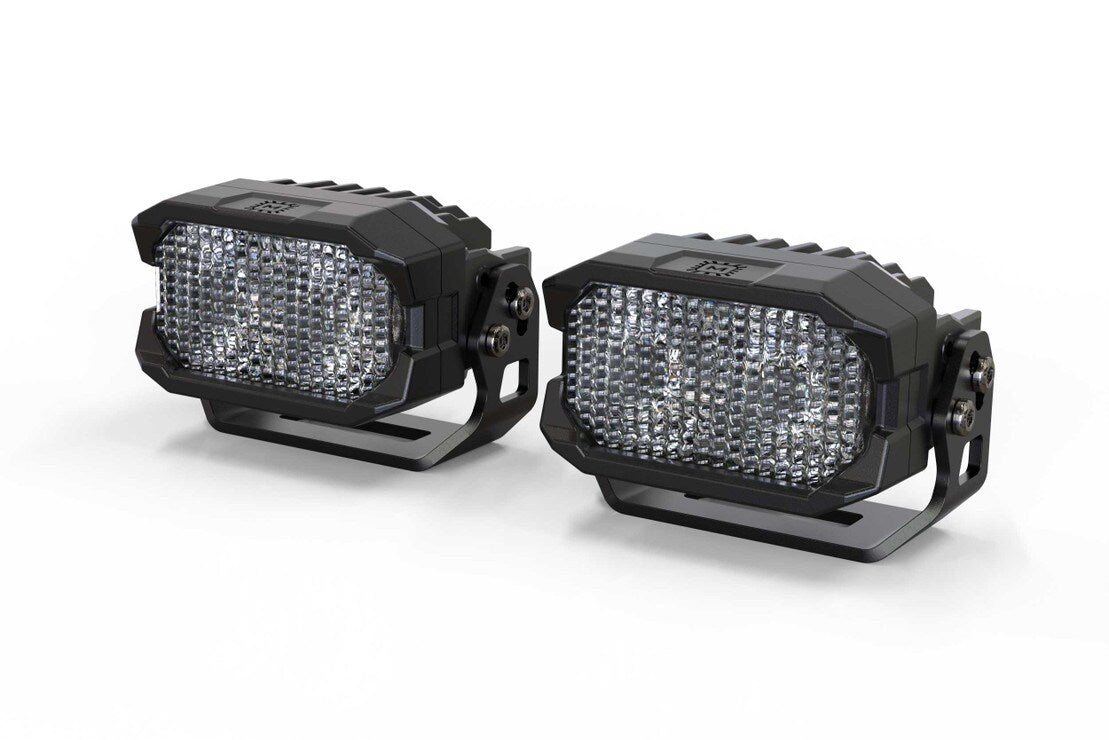

The overall footprint of the 2Banger is extremely compact, making them the perfect solution for adding extra light where full-size pods wont work. Each set of Morimoto 2Banger LED pods include a set of adjustable pedestal mounts for a universal fitment. Morimoto also offers a variety of application-specific mounting bracket kits for Racks and A-Pillars that make them bolt-on for many of today's most popular trucks. Check out the full lineup for details on what's available for your application.
The Morimoto 2Banger LED Pods have been developed from the ground up to set a new standard in their segment, and the same goes for the optional wire harness. If you want the best, bingo. Not one component on the harness was overlooked for the sake of cost or simplicity. Triple sealed proprietary 4-pin relay with hanger. Proprietary over-molded inline fuse holder with 20A mini fuse. DT06-2S female outputs with dual seals. Stainless steel power and ground terminals. Proprietary M-Spec push button switch with Yellow-LED backlight.
-
NOTE:These specifications are per pod / each!
-
INTENSITY (WHITE):8,000 Cd (80 lux @ 10m)
-
INTENSITY (YELLOW):4,250 Cd (42.5 lux @ 10m)
-
POWER (STABILIZED):13.5W
-
CURRENT:1.0A @ 13.5V DC
-
PEAK LUMINOSITY (RAW):900 lm
-
DIMENSIONS:81.0mm W, 49.8mm H (63.5mm w/ Bracket), 59.2mm D
-
COLOR:2400K (Yellow) or 5600K (White)
-
LIGHT SOURCE:2x Nichia NCSY131F or Nichia NCSW131F
-
INPUT:Integrated Deutsch DT 2-Pin
-
MATERIAL:Makrolon LED PC (Lens), Powdercoated Die Cast Aluminum (Housing)
INCLUDED:
-

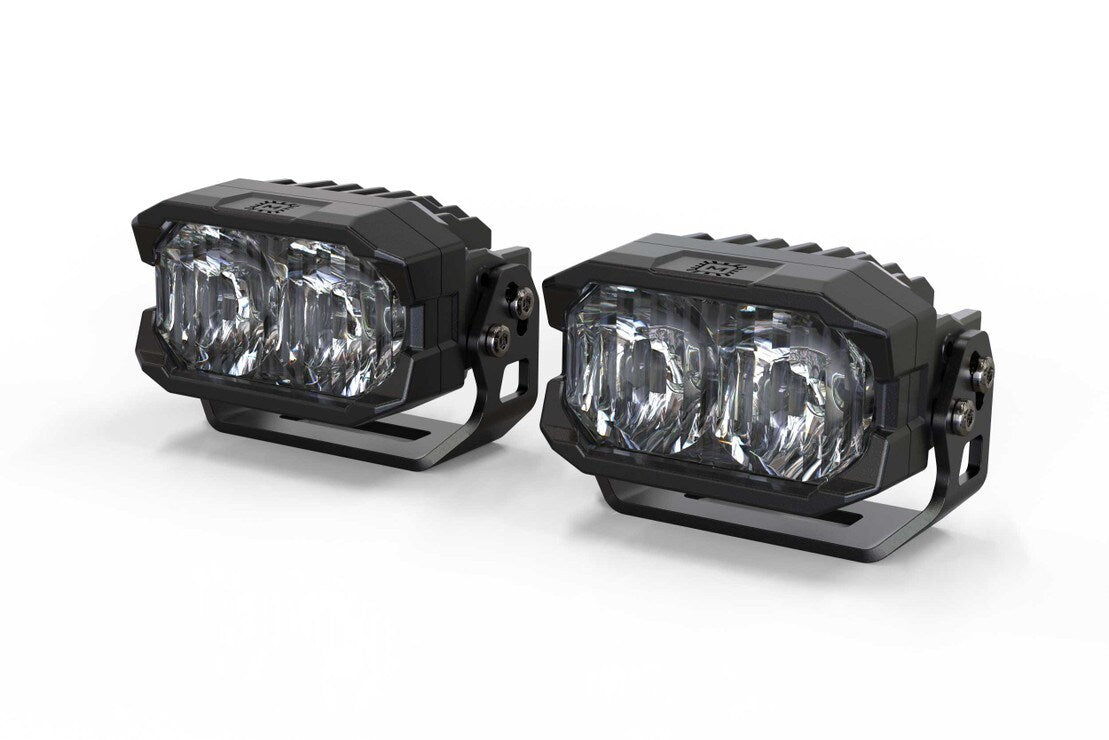

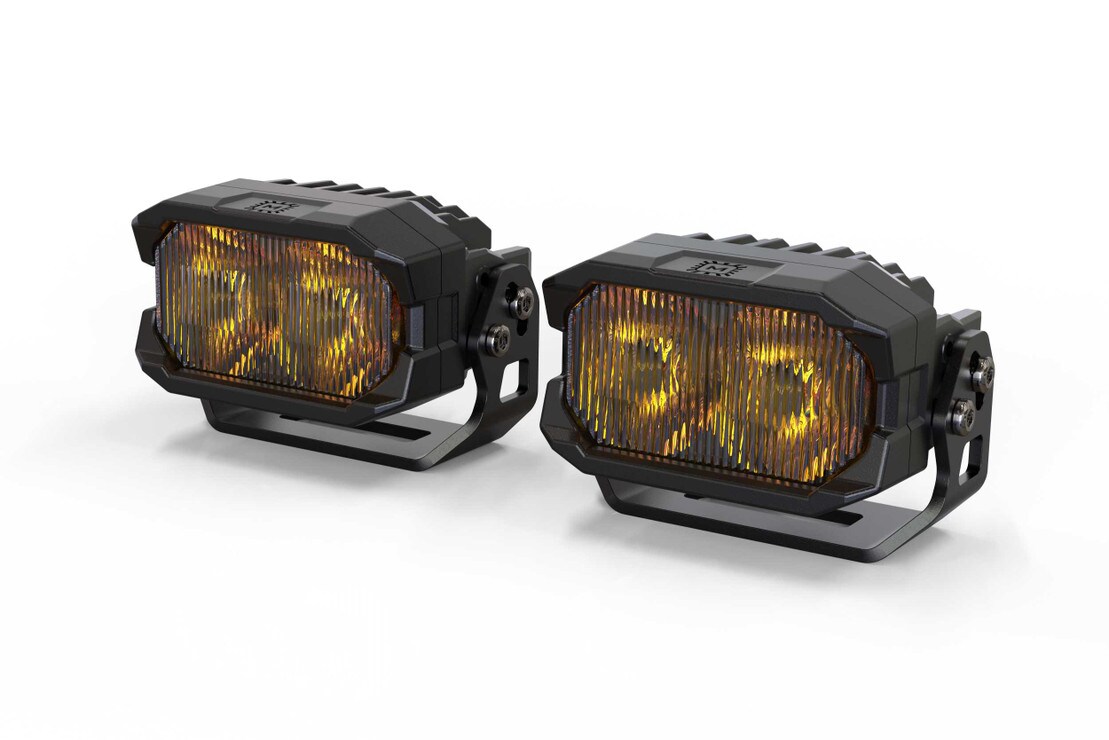

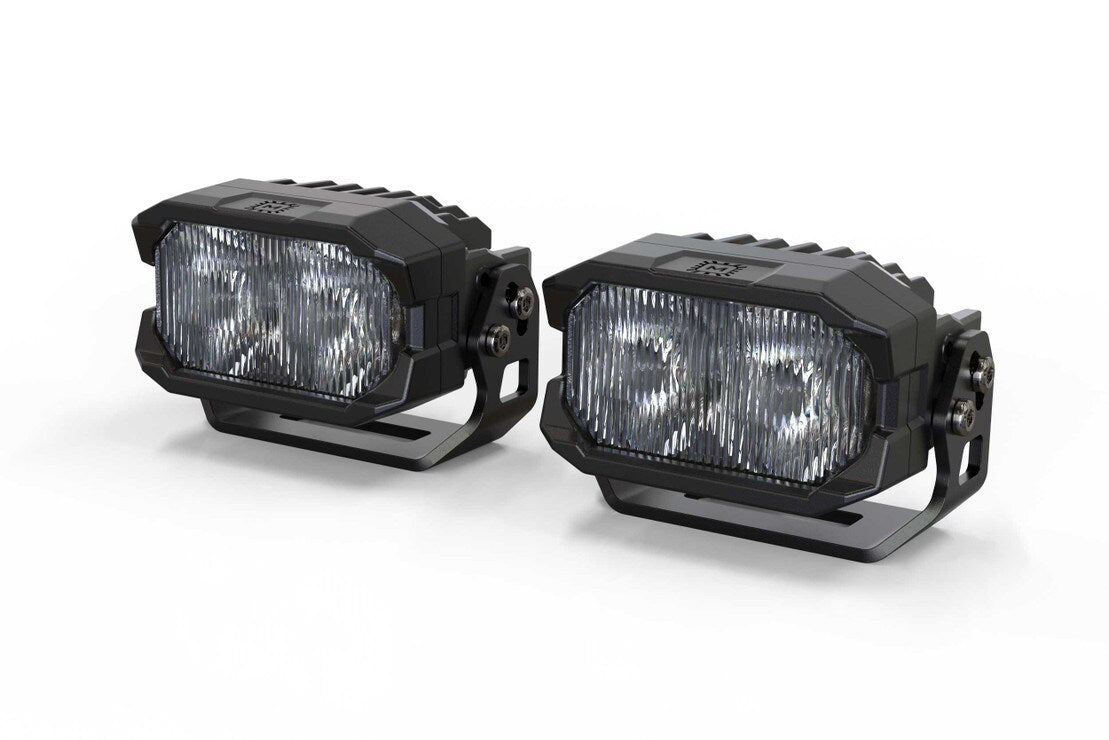

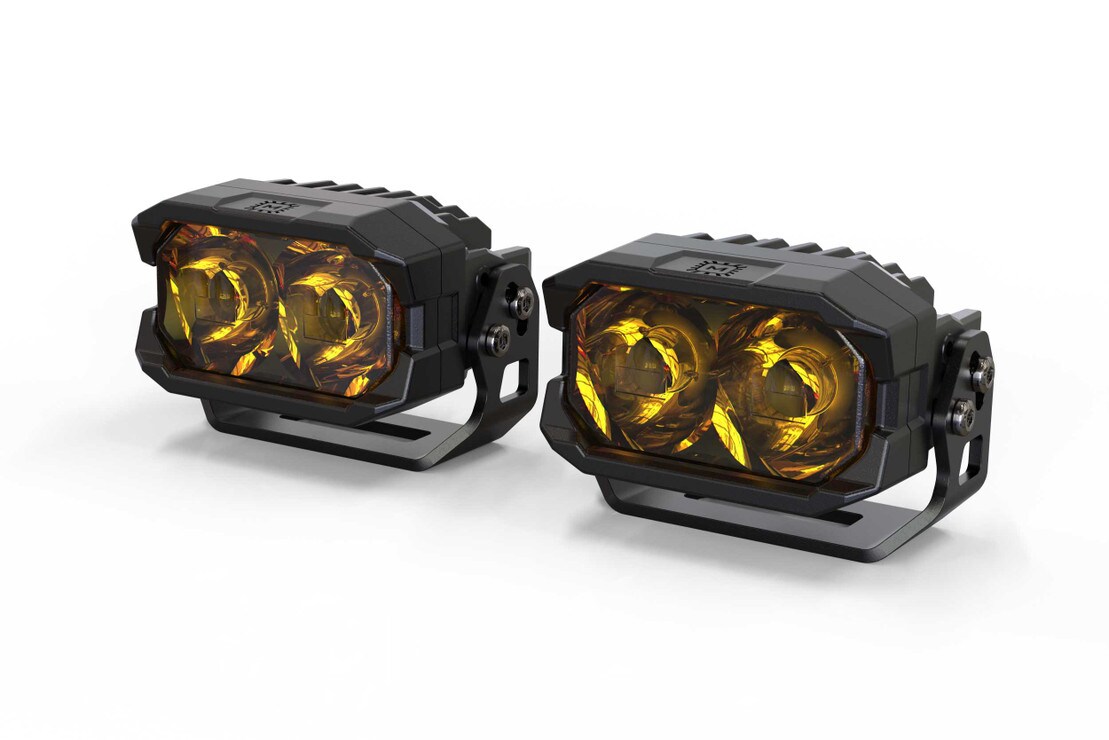

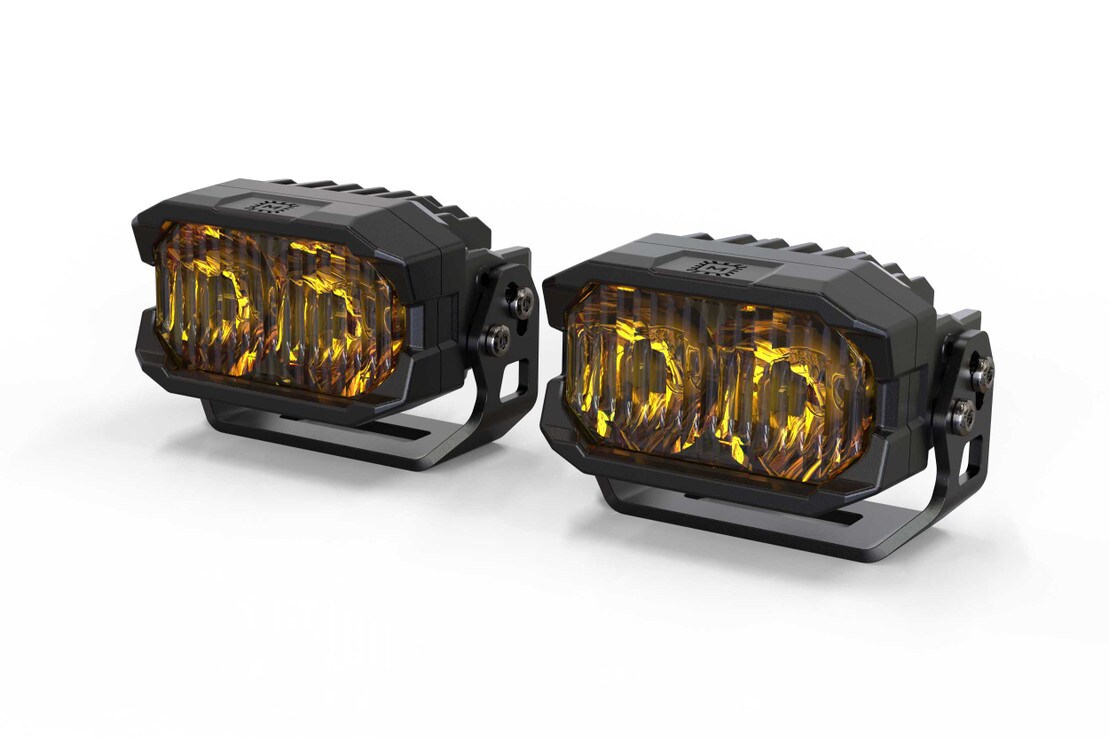

2x (One Pair) Morimoto 2Banger NCS Wide (White or Yellow)
-
BRACKETS:2x (One Pair) Universal U-Shape Mounts
-
HARDWARE:Complete pack (Stainless Steel)
-
OPTIONAL WIRING: 1x Morimoto Switched Relay Harness or DT Connectors
