Description

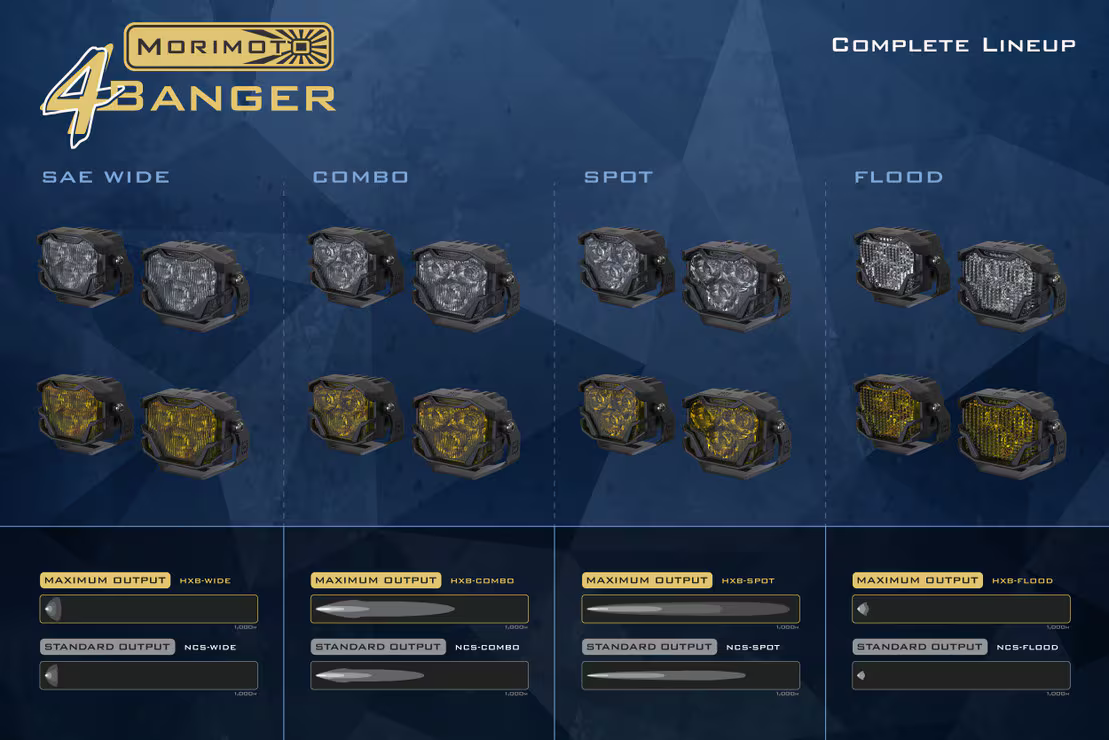

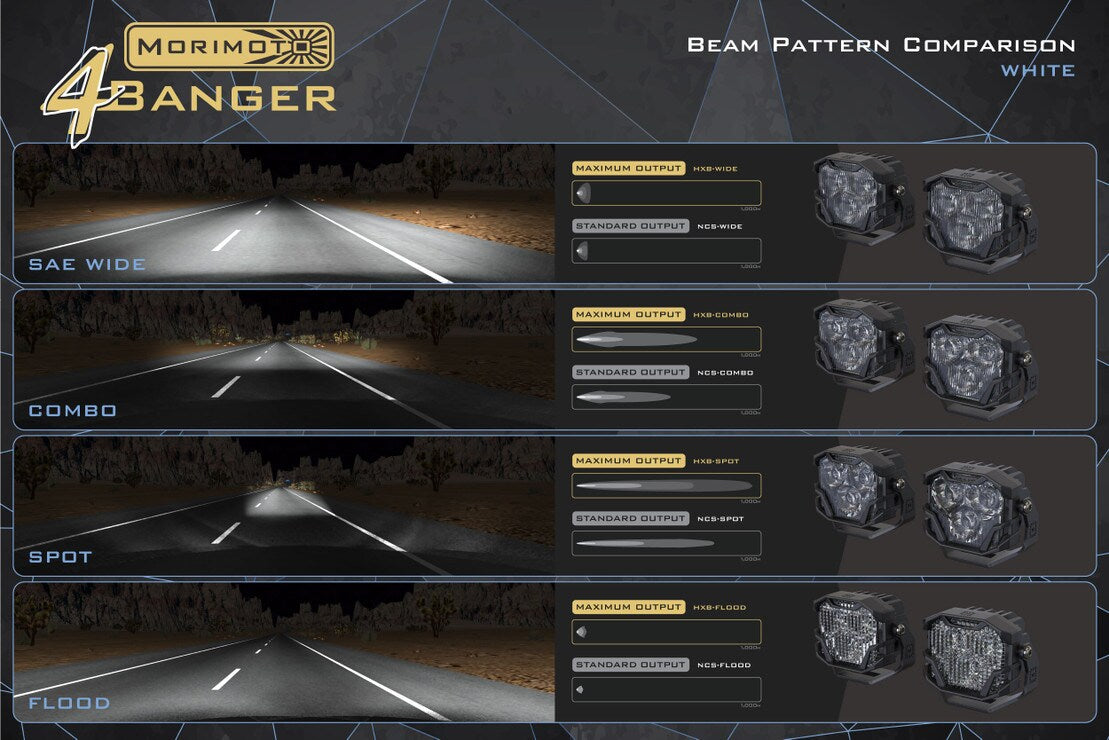

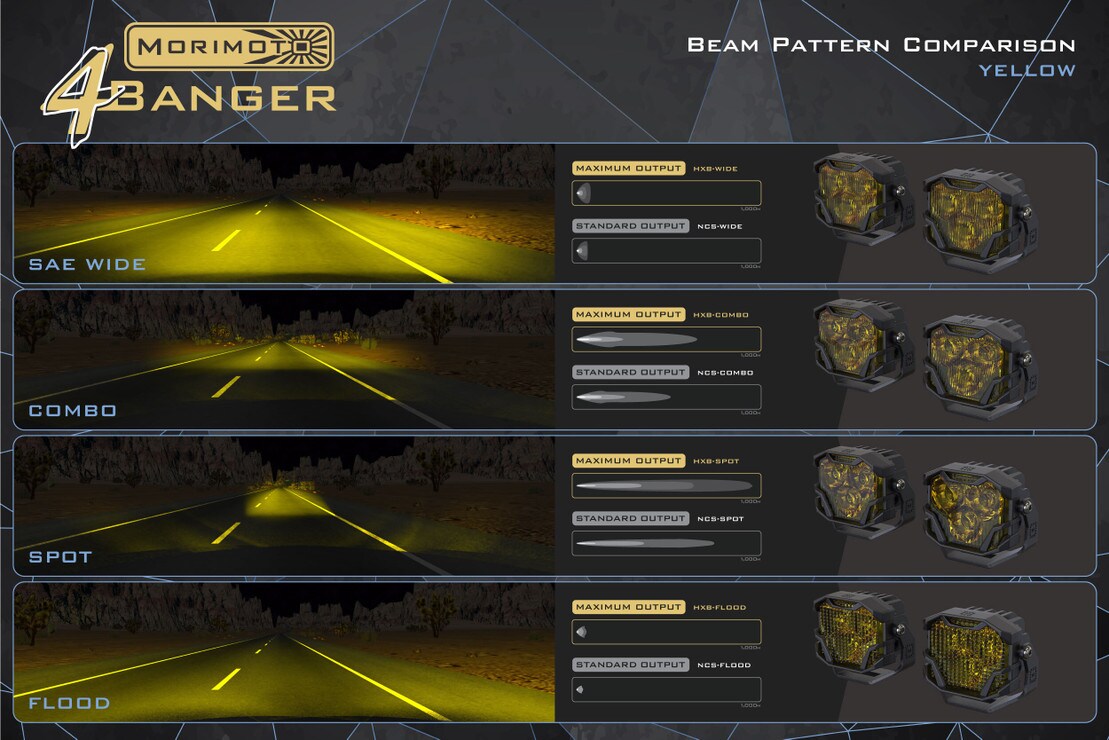

NCS SPOT BEAM: Illuminates well into the distance. The NCS Spot features a highly focused 5-degree hot spot that's surrounded by a 14H x 4C degree flood beam, making it the perfect weapon for long range visibility. While not quite as powerful as the 4Banger HXB Spot (which uses Osram LEDs), when paired up with a set of NCS Combos, you will have no problems avoiding deer in the distance.

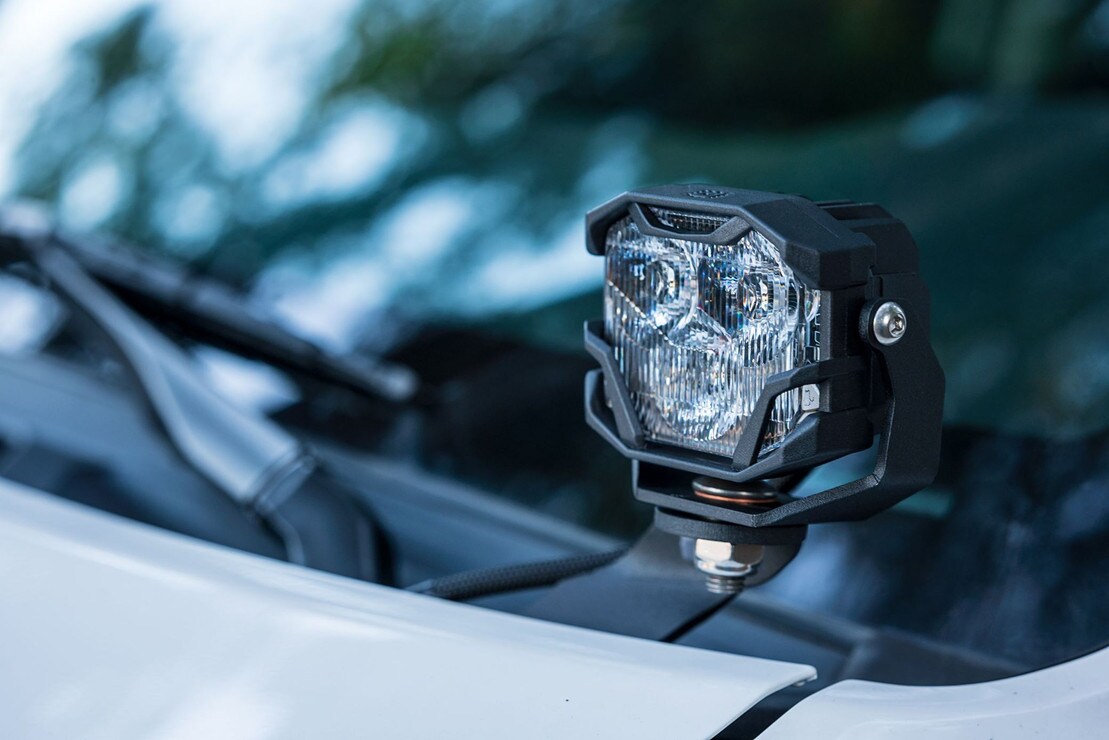

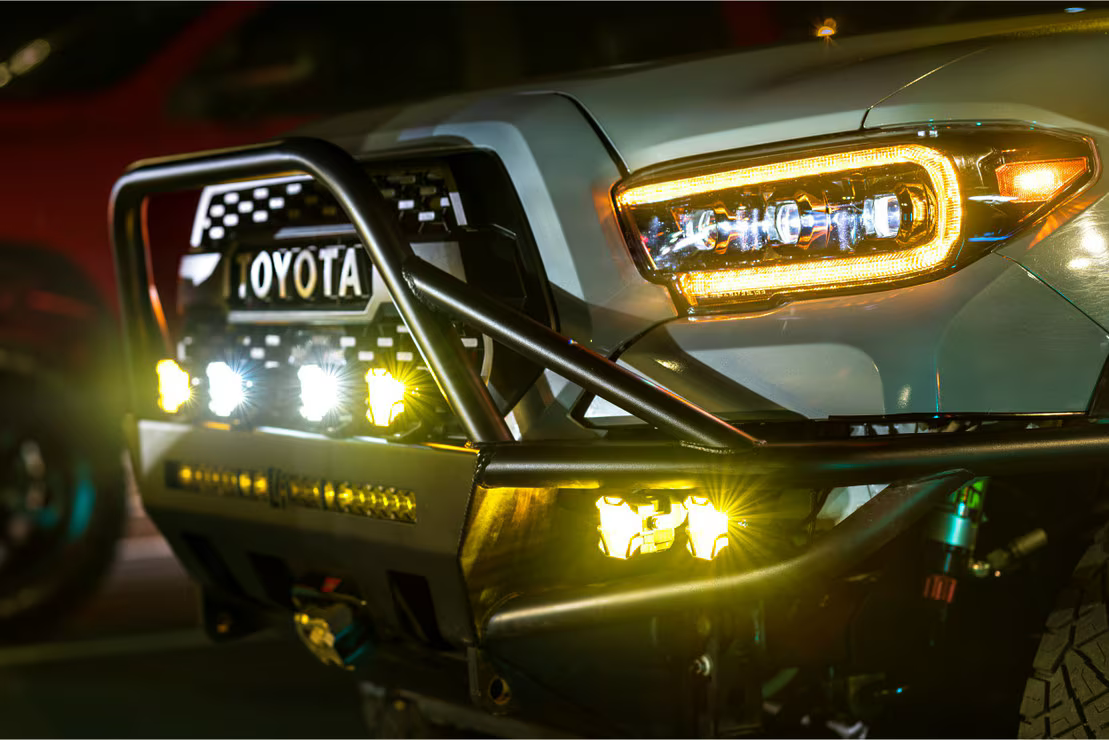

FORM MEETS FUNCTION: The overall footprint of the 4Banger NCS is approximately 30% smaller than alternatives that offer comparable performance. This allows for an unbeatable OEM+ like fitment when paired with Morimoto's fog light or A-Pillar mounting kits, which are available for today's most popular trucks. Don't be that guy with LED pods bulging out of your bumper.
-
NOTE: These specifications are per pod / each!
-
INTENSITY (WHITE): 105,000 Cd (Post Warm-Up) (1,005lux @ 10m)
-
INTENSITY (YELLOW): 73,500 Cd (Post Warm-Up) (735lux @ 10m)
-

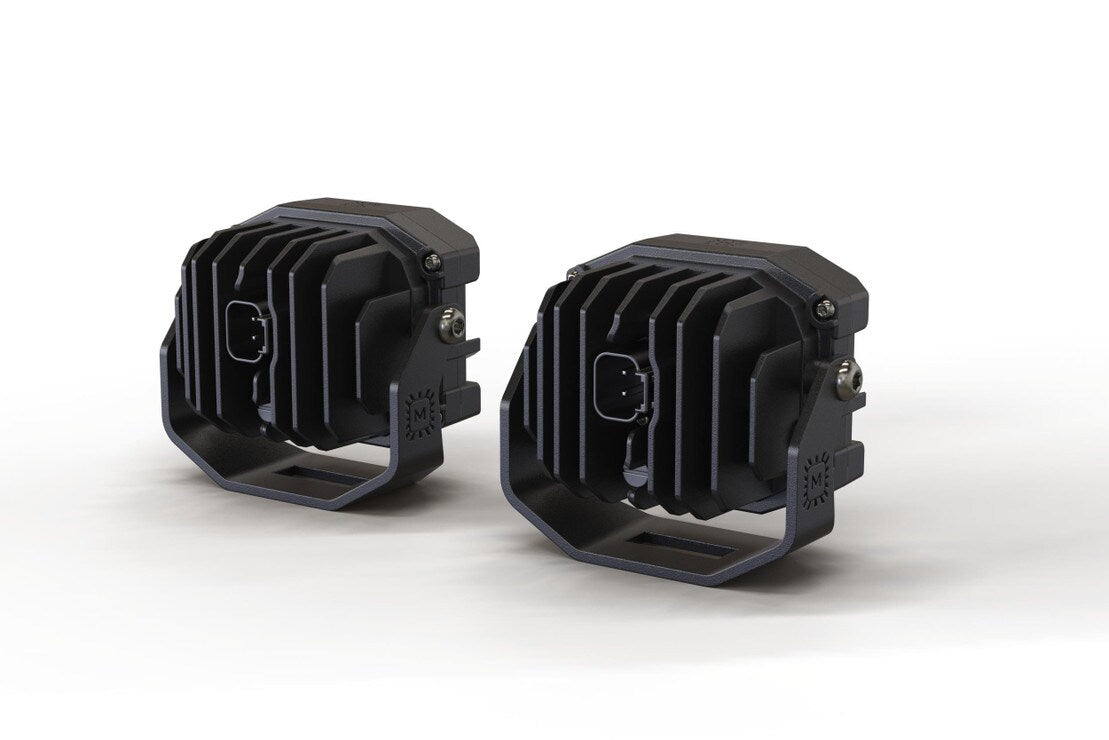

INPUT: Proprietary Overmolded Deutsch DT 2-Pin
-
POWER (STABILIZED): 15.6w
-
CURRENT: 1.5A @ 13.5V DC
-
PEAK LUMINOSITY (RAW): 1,350lm
-
DIMENSIONS: 82mm W, 67mm H, 60mm D
-
HARDWARE: M6 x 1.0 x 8mm (4Banger to U-Bracket), M10 x 1.5 x 20mm (U-Bracket base)
-
COLOR: 2400K (Yellow) or 5600K (White)
-
LIGHT SOURCE: 3x Nichia NCSY131F or NCSW131F
-

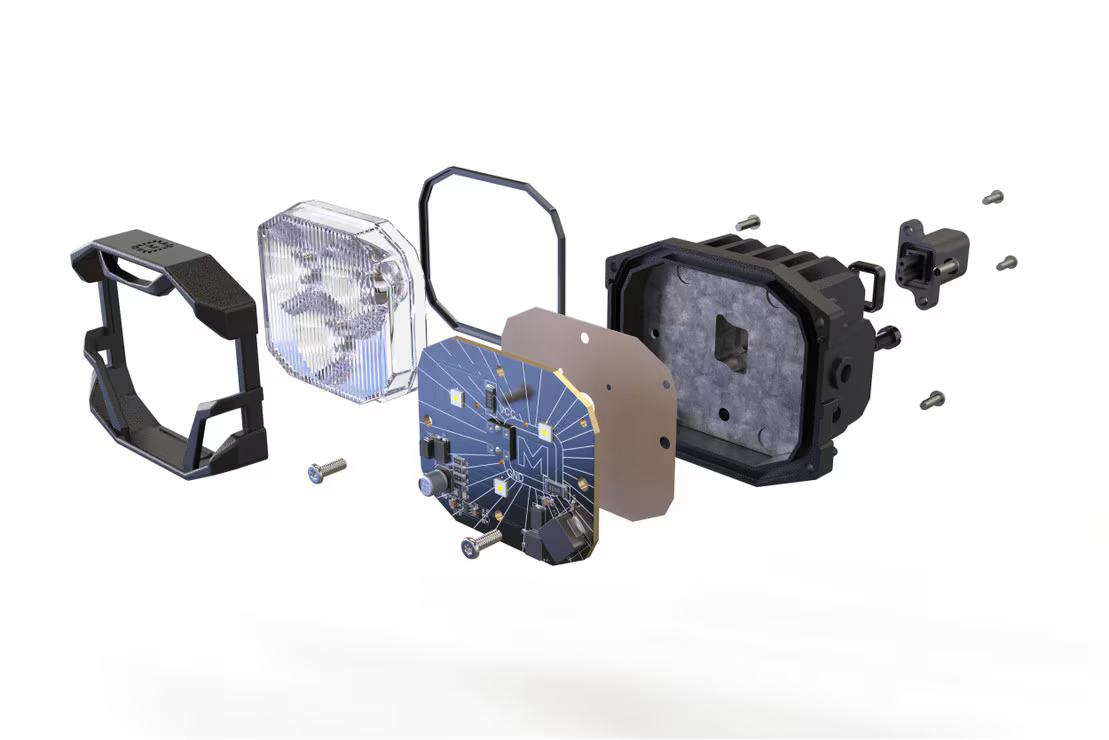

MATERIAL: Makrolon LED PC (Lens), Powdercoated Die Cast Aluminum (Housing)
INCLUDED:
-

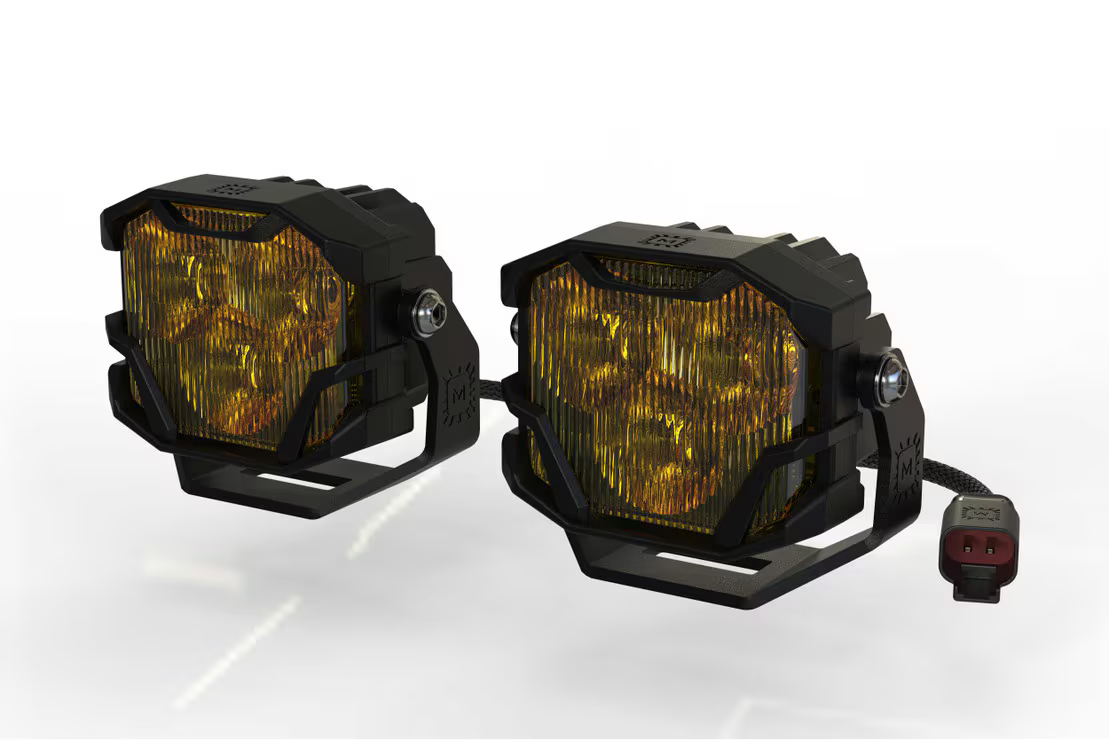

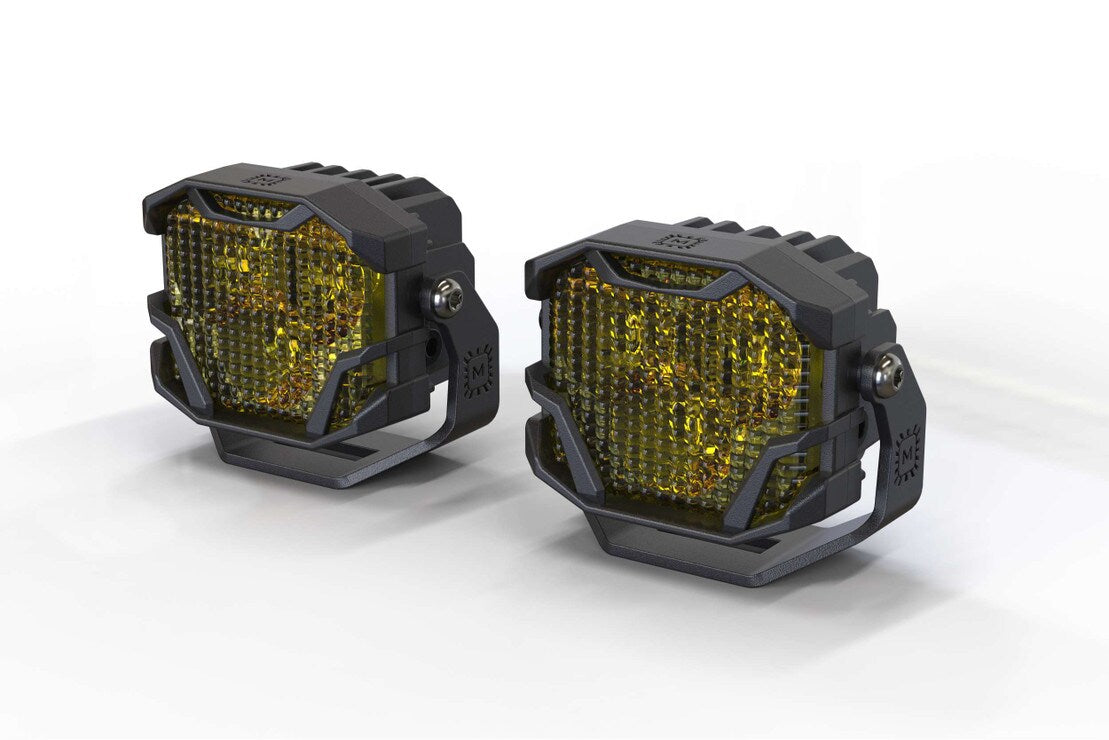

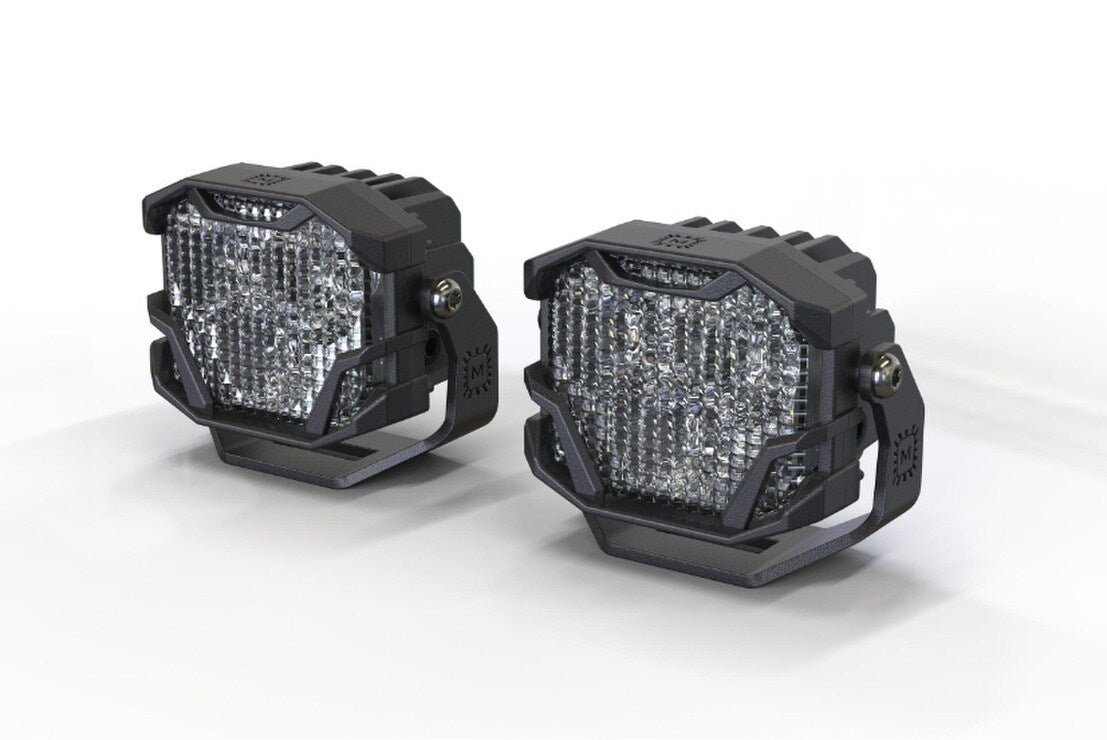

LED PODS: 2x (One Pair) Morimoto 4Banger NCS Spot (White or Yellow)
-
BRACKETS: 2x (One Pair) Universal U-Shape Mounts
-
HARDWARE: Complete pack (stainless steel)
-

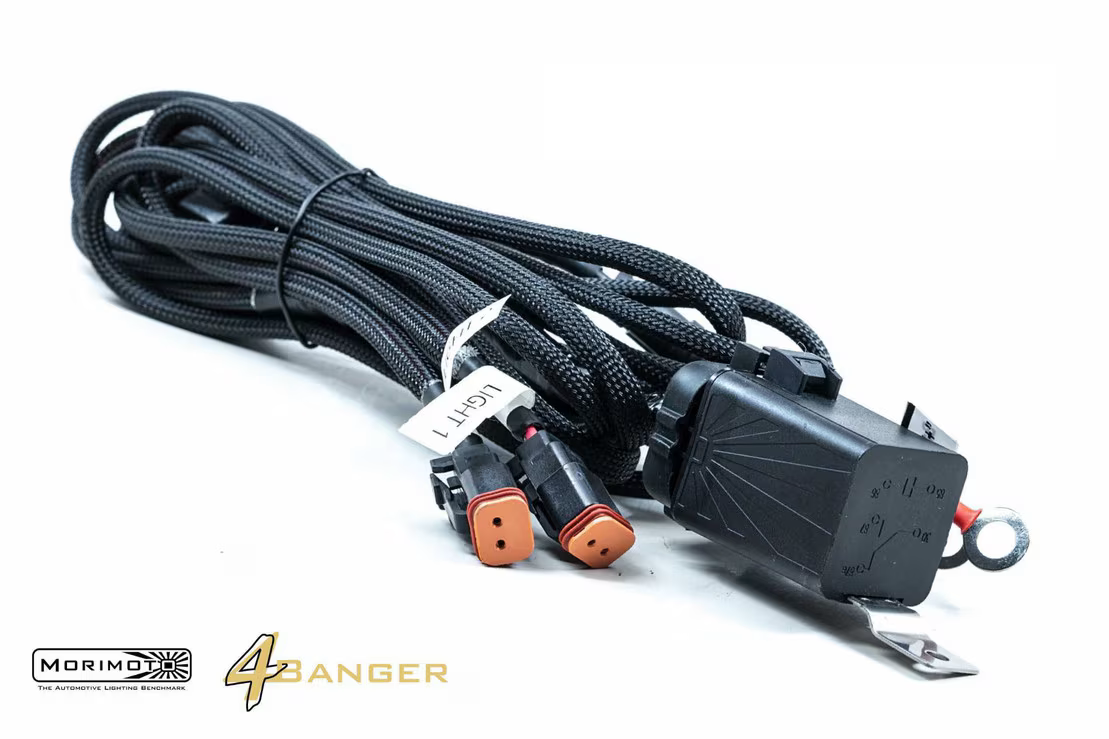

OPTIONAL WIRING: 1x Morimoto 4Banger Switched Relay Harness or DT Connectors
