Description
Features

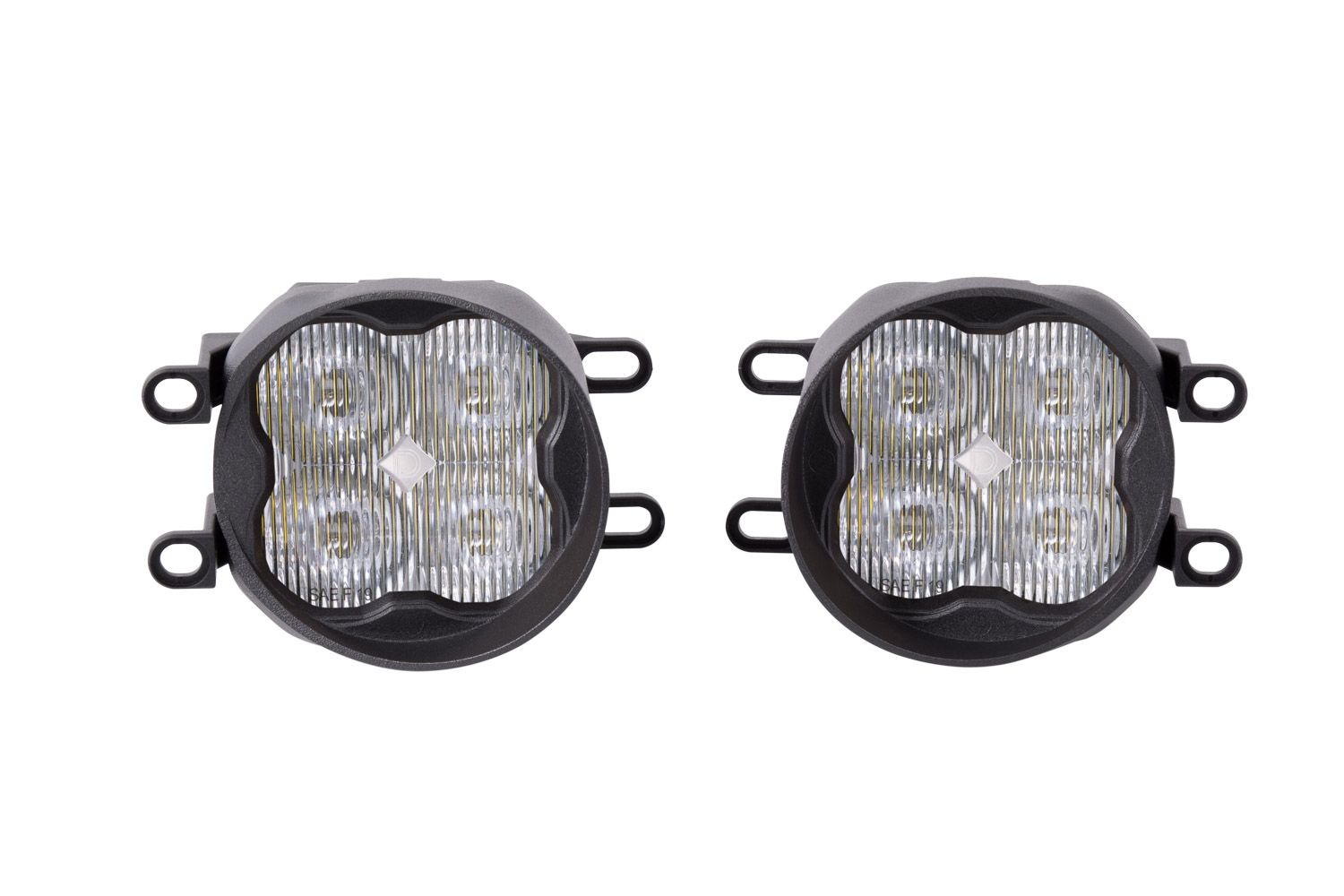

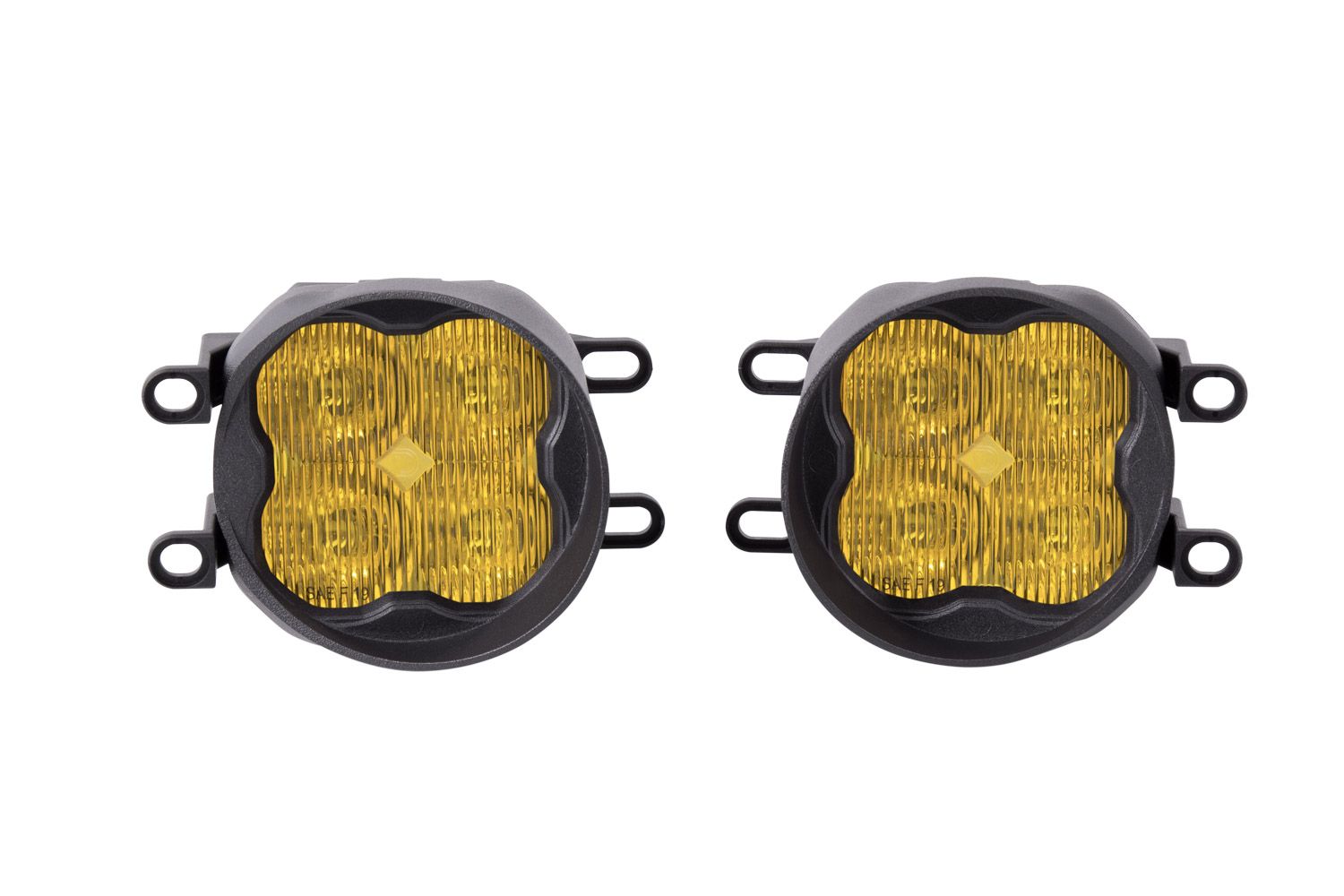

- Direct replacement for Toyota Tacoma fog lamps
- SAE-compliant road-legal output
- Includes angled bezel, for factory-style appearance
- Plug and play, no modification needed
- Advanced TIR optics provide high efficiency and focus
- Durable powdercoated aluminum die-cast
- Engineered and Assembled in USA
NOTE: This kit is not compatible with TRD Pro models. This kit is a replacement for OEM fog lamps. If your vehicle does not have fog lamps, additional hardware and wiring may be needed for installation.
Main Beam Power (watts): Sport: 14.5, Pro: 36, Max: 38.5
Backlight Power (watts): 0.4
Main Beam Current (amps @ 12.8V): Sport: 1.1, Pro: 2.7, Max: 3
Backlight Current (amps @ 12.8V): 0.03
Operating Voltage: 9-30V
Beam Angle: Fog, 80°x8°
Polarity: Polarity Specific
Operating Temperature: -40C to 85C (-40F to 185F)
LED Emitter: Luxeon Z ES, Cree XP-L HI, Osram Boost HX
Connector(s): Deutsch DT Input
Driver Features: Constant Current
Materials: Polycarbonate Lens, Aluminum Casting, Rubber Gasket
Cooling: Passive, Pin-Fin heatsink
Compliance Ratings: SAE J575 Durability Test, SAE J583 Foglamp Beam Pattern
Intrusion Ratings: IP69K Waterproof, High Pressure
Unit Weight (lb): 0.56
Product Weight (lb): 0.81
Application: Fog Light
Make: Toyota
Model: Tacoma
Years: 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023
In the Box:
- Two (2) SS3 3” Angled LED Pods
- Two (2) Type B brackets
- Two (2) H11 2-pin DT adapters
- One (1) H11 4-pin DT backlight tap wire kit
- Mounting hardware
- Mounting guide
Quantity: Two (2)
Warranty: 8 year warranty
