Description

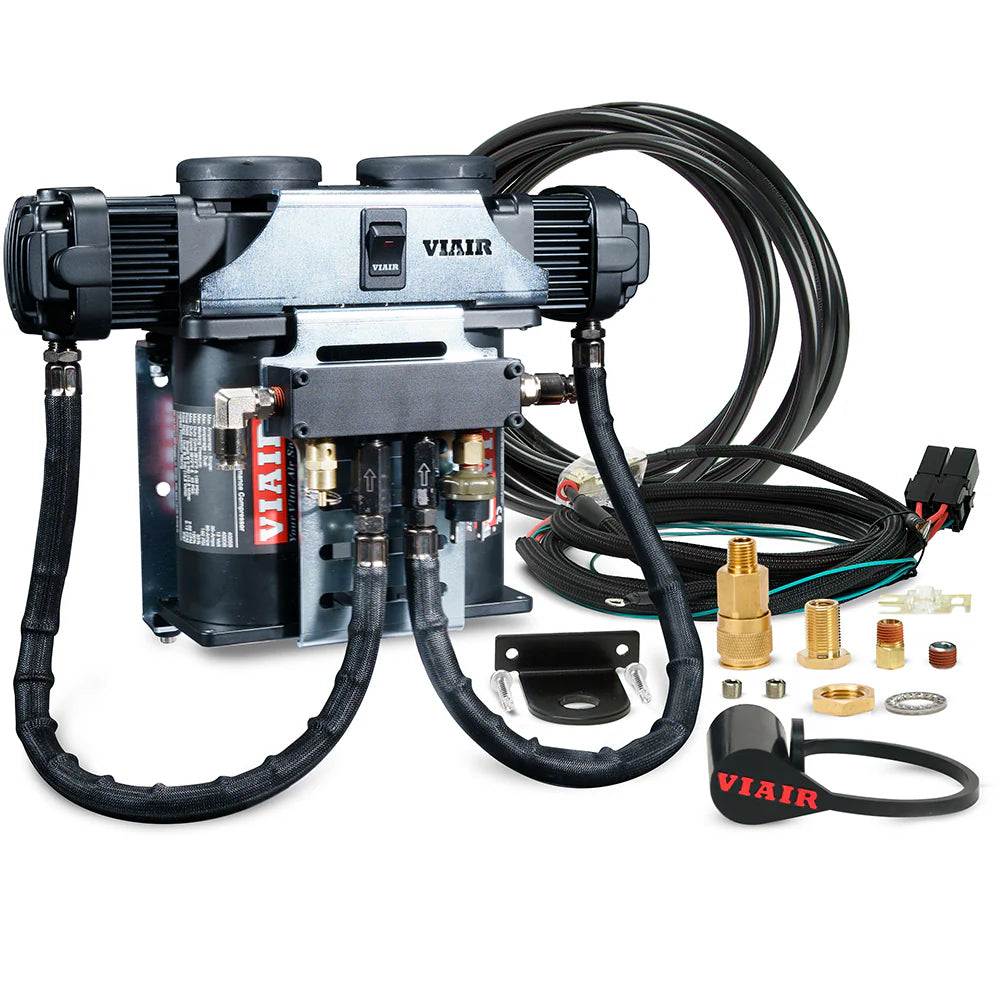

VIAIR Dual Mounted Systems (VMS) are high-performance onboard air systems designed to provide high CFM and fast tire fill with unsurpassed durability. These kits come with all components necessary to install a fully functioning system. A silver universal cradle bracket integrates both compressors and provides easy mounting in various locations of the vehicle. VMS can be used for tire inflation, air tools, air horns, air lockers, air bags and inflatables of all kinds
SPECS:
- CFM: 5.12 @ 0 PSI
- 12-Volt
- Permanent Magnetic Motor
- Duty Cycle: 33% @ 100 PSI
- Duty Cycle: 100% @ 40 PSI
- Max. Working Pressure: 150 PSI
- Max. Air Tank Size: 10.0 Gallon
- Combined Max. Amp Draw: 60 Amps
- Ingress Protection Rating: IP67
- Max Ambient Temp: +158°F
- Min Ambient Temp: -40°F
- Dimensions:9″L x 4″W x 6.75″H (Each Unit)
- Net Weight: 25 lbs.
FEATURES:
- (2) 400C (Stealth Black or Chrome) Compressors
w/ Thermal Overload Protectors - Complete dual wiring harness
w/ 80A fuse holder - Air Locker compatible
- Sealed compressor with IP rating of IP67
(Waterproof/Dustproof) - Designed to be air tank ready (Air tank optional)
- 8-port Billet Manifold
- Pro Series Air Source Relocation Kit
- Illuminated Rocker Switch
TIRE FILL RATES
| 35" X 12.5" | FILL RATE |
|---|---|
| 0 to 40 PSI | 4 min. 15 sec. (± 15 sec.) |
| 10 to 40 PSI | 3 min. 15 sec. (± 10 sec.) |
| 37" X 12.5" | FILL RATE |
| 0 to 40 PSI | 4 min. 55 sec. (± 15 sec.) |
| 10 to 40 PSI | 3 min. 45 sec. (± 10 sec.) |
TANK FILL RATES
| 2.5 GALLON TANK | FILL RATE |
|---|---|
| 0 to 145 PSI | 1 min. 10 sec. (± 05 sec.) |
| 110 to 145 PSI | 20 sec. (± 03 sec.) |
| 5.0 GALLON TANK | FILL RATE |
| 0 to 145 PSI | 2 min. 21 sec. (± 10 sec.) |
| 110 to 145 PSI | 43 sec. (± 05 sec.) |
